Ka-Band Transmitter

DC to 6 GHz IF, 27 to 31 GHz RF, 6.5 to 8.25 GHz LO

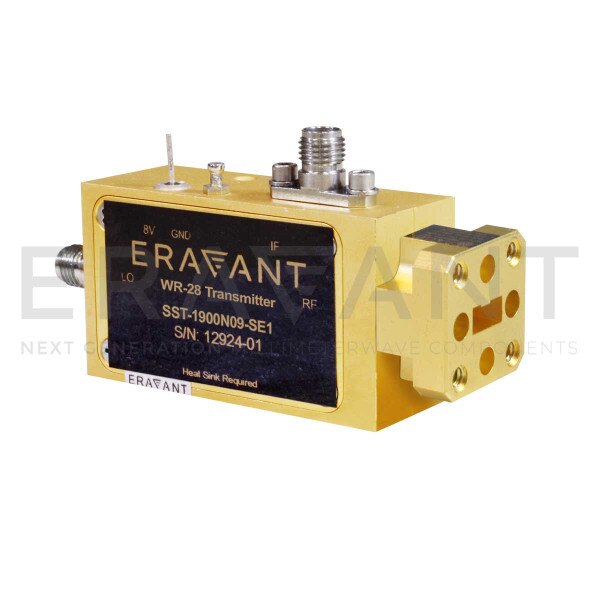

SST-2930432825-28-SE1 is a WR-28 integrated transmitter module for radar and communication systems. The transmitter has a typical conversion gain of 25 dB with a typical P1dB of 27 dBm in the frequency range of 27 to 31 GHz. The required LO power is +5 dBm between frequencies of 6.5 and 8.25 GHz. The RF transmit port is a WR-28 Uni-Guide™ Waveguide with UG-599/U Flange while the LO and IF port is female SMA connectors. Other port configurations, are also available under different model numbers.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

RF Output Minimum Frequency27 GHz
RF Output Maximum Frequency31 GHz
P1dB27 dBm
Conversion Gain25 dB
LO Frequency7.53 GHz
LO Input Power5 dBm
Bias Voltage8 VDC
RF PortWR-28 Uni-Guide™ WG
