2.92 mm Coaxial Lowpass Filter

DC to 50 GHz, 30 dB Rejection from 75 to 110 GHz
Availability:IN STOCKPlease contact us if you need more units than what is available online.

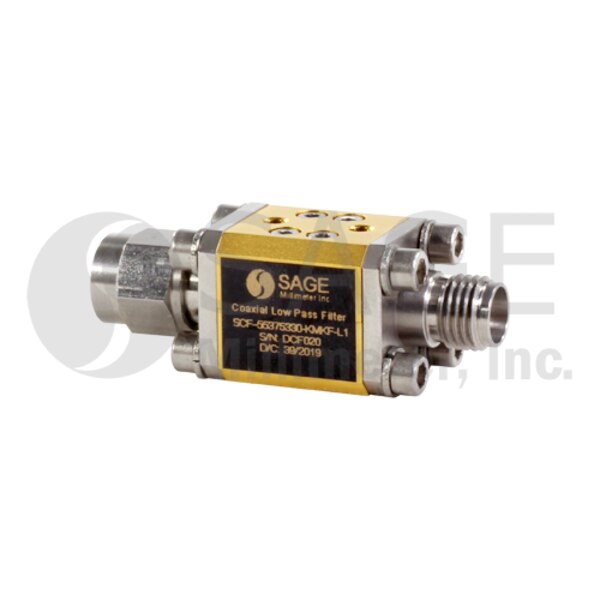

SCF-55375330-KFKM-L1 is a coaxial lowpass filter with a pass band from DC to 50 GHz. The typical insertion loss of the pass band is 1.5 dB. The rejection band is from 75 to 110 GHz with a typical rejection value of 30 dB. The RF connectors of the filter are male and female 2.92 mm (K) connectors. The passband typical return loss is 15 dB. This particular model is recommended for use with SAGE Millimeter’s SFB-10-N1/SFB-10-E2 and SFU-10-N1/SFU-10-E2 W-band balanced mixers and upconverters in order to reduce LO to IF leakage. Other configurations, such as different connectors for input and output are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency50 GHz
Minimum Rejection Frequency75 GHz
Maximum Rejection Frequency110 GHz
Rejection30 dB
Insertion Loss1.5 dB
Passband Return Loss15 dB
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
