Coaxial Adapter

DC to 50 GHz, 2.4 mm (M) to 2.4 mm (M)
SKU:SCT-2M2M-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

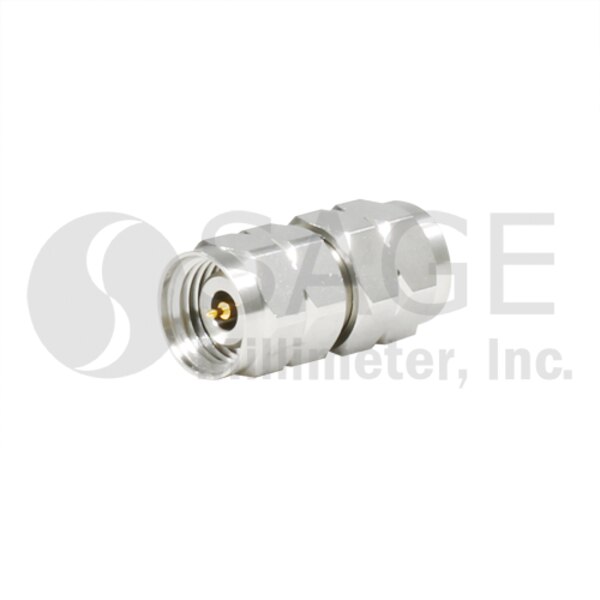

SCT-2M2M-UB is a 2.4 mm male to 2.4 mm male coaxial adapter that covers the frequency range of DC to 50 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.3 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 24$160.00
25 - 49$144.00
50 - 99$129.60

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Insertion Loss0.3 dB
Return Loss21 dB
Impedance50 Ohms
Connector 12.4 mm Male
Connector 22.4 mm Male
