High Performance Coaxial Cable Assembly, Limited Run

DC to 50 GHz, 2.4 mm (M) to 2.4 mm (M), 3", Flexible, Phase Matched
SKU:SCW-2M2M003-F1-PM
Availability:IN STOCKPlease contact us if you need more units than what is available online.
Select up to 4 products to compare.
Select up to 4 products to compare.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCW-2M2M003-F2-PM as an alternative solution. Read more about Limited Run Products here.

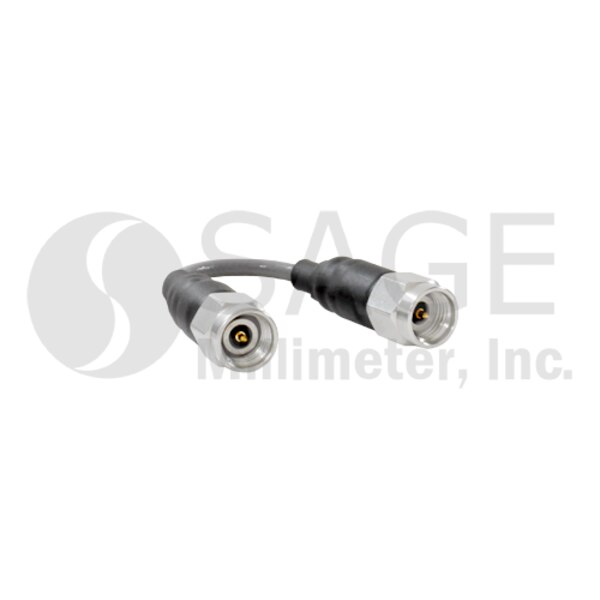

SCW-2M2M003-F1-PM is a 3" long, flexible, phase matched coaxial cable with 2.4 mm male connectors that cover the frequency range of DC to 50 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
    Login to view pricing

    Bulk Pricing

    Login to view pricing

    Technical Details

    Minimum FrequencyDC
    Maximum Frequency50 GHz
    Return Loss14 dB
    Impedance50 Ohms
    Cable Length3"
    Cable TypeFlexible
    Cable Outer Diameter0.087"
    Minimum Bending Radius0.5"
    Connectors2.4 mm Male
