Right Angle (90°) Coaxial Adapter

DC to 50 GHz, 2.4 mm (F) to 2.4 mm (F)
SKU:SCT-2F2F-U8-R
Availability:IN STOCKPlease contact us if you need more units than what is available online.

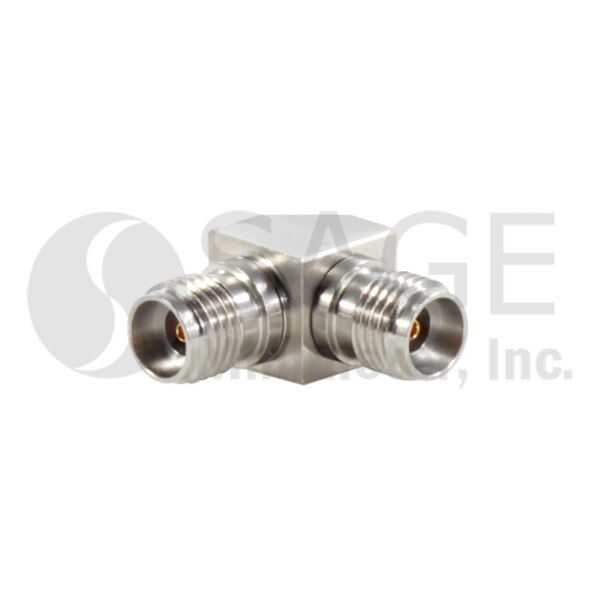

SCT-2F2F-U8-R is a 2.4 mm female to 2.4 mm female coaxial adapter with a right angle (90°) that covers the frequency range of DC to 50 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss and typical insertion loss of 0.4 dB. The impedance of the adapter is 50 ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

QuantityPrice
1 - 24$445.00
25 - 49$400.50
50 +$360.45

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency50 GHz
Insertion Loss0.4 dB
Return Loss15 dB
Impedance50 Ohms
Connector 12.4 mm Female
Connector 22.4 mm Female
