Coaxial Cable Assembly, Limited Run

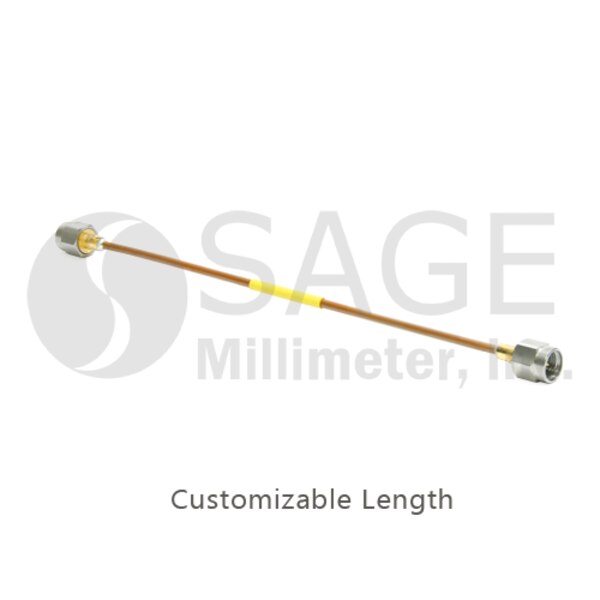

DC to 40 GHz, 2.92 mm (M) to 2.92 mm (M), 12", Semi-Rigid, Phase Matched
SKU:SCW-KMKM012-S1-PM
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCW-KMKM012-S2-PM as an alternative solution. Read more about Limited Run Products here.

SCW-KMKM012-S1-PM is a 12” long, semi-rigid, phase matched coaxial cable with 2.92 (K) mm male connectors that cover the frequency range of DC to 40 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Return Loss18 dB
Impedance50 Ohms
Cable Length12"
Cable TypeSemi-Rigid
Cable Outer Diameter0.087"
Minimum Bending Radius0.126"
Connectors2.92 mm (M)
