Coaxial Adapter

DC to 40 GHz, 2.92 mm (F) to SMPS (G3PO) (M)
SKU:SCT-KFAM-UB
Availability:IN STOCKPlease contact us if you need more units than what is available online.

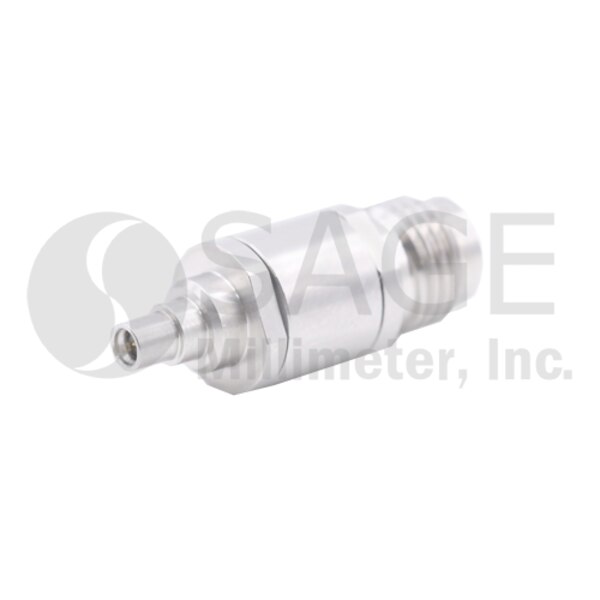

SCT-KFAM-UB is a 2.92 mm female to SMPS (G3PO) male coaxial adapter that covers the frequency range of DC to 40 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Insertion Loss-
Return Loss17 dB
Impedance50 Ohms
Connector GenderFemale to Male
Connector SeriesSMPS to 2.92 mm
ConfigurationIn-line (180°)
