Right Angle (90°) Coaxial Adapter, Limited Run

DC to 40 GHz, 2.92 mm (F) to 2.92 mm (M)
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SCT-KFKM-UB-R as an alternative solution. Read more about Limited Run Products here.

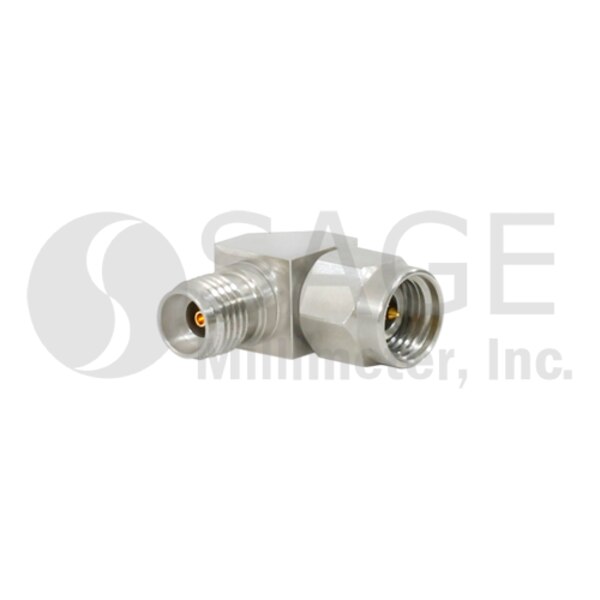

SCT-KFKM-U8-R is a 2.92 mm (K) female to 2.92 mm (K) male coaxial adapter with a right angle (90°) that covers the frequency range of DC to 40 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a typical return loss of 28 dB. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Insertion Loss0.4 dB
Return Loss25 dB
Impedance50 Ohms
Connector GenderFemale to Male
Connector Series2.92 mm to 2.92 mm
ConfigurationRight Angle (90°)
