Bulkhead Coaxial Adapter

DC to 40 GHz, 2.92 mm (F) to 2.92 mm (F), Thermal Vacuum Safe
SKU:SCT-KFKF-UB-B-V
Availability:IN STOCKPlease contact us if you need more units than what is available online.

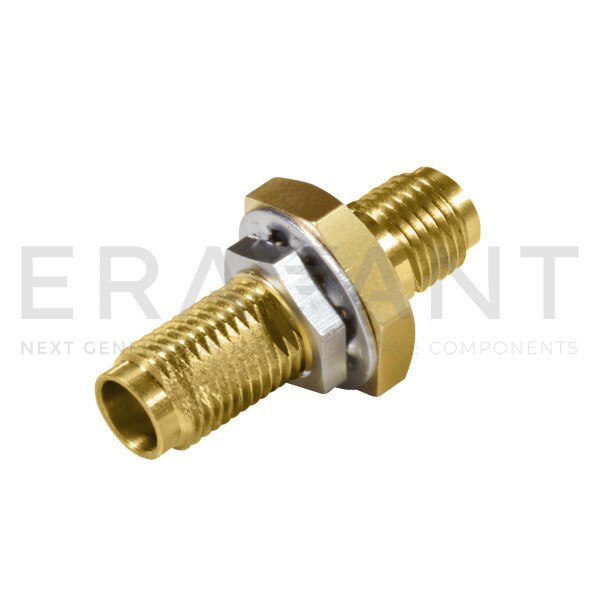

SCT-KFKF-UB-B-V is a 2.92 mm female to 2.92 mm female hermetically sealed bulkhead type coaxial adapter that covers the frequency range from DC to 40 GHz. The bulkhead adapter uses a glass bead and O-ring seal to provide a hermetically sealed RF interface between the vacuum and atmospheric environments. It is ideal for use as a coaxial RF feedthrough for testing in vacuum environments, such as a thermal vacuum chamber. It can also be used for other applications where an airtight vacuum seal is required. The bulkhead configuration gives mounting flexibility for a variety of mounting plates and flanges, such as ConFlat (CF) and KF vacuum flanges. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 24 $420.00
25 - 49 $378.00
50 - 99 $340.20

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Insertion Loss-
Return Loss18 dB
Impedance50 Ohms
Connector GenderFemale to Female
Connector Series2.92 mm to 2.92 mm
ConfigurationPanel Mount (Bulkhead)
