2.4 mm Female Coaxial Programmable Attenuator

DC to 40 GHz, 110 dB, 10 dB Step Size
SKU:STA-00040311010-2F2F-P7
Availability:8 to 10 Weeks ARO

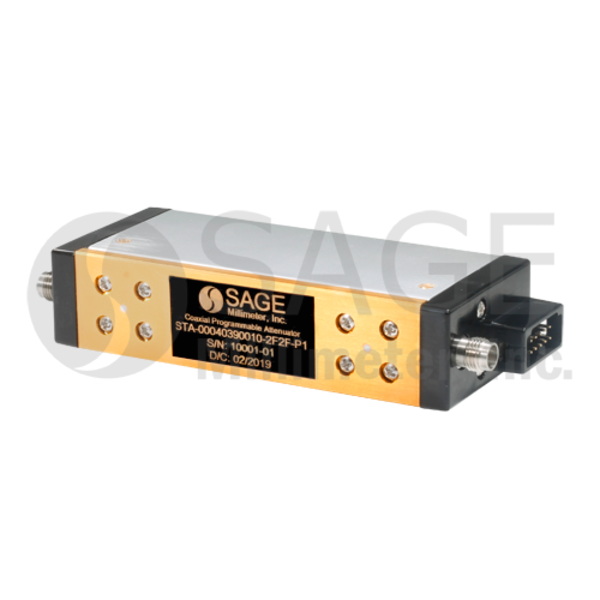

STA-00040311010-2F2F-P7 is a coaxial programmable attenuator for use in microwave and millimeter systems where auto attenuation adjustment is required. The attenuator covers the frequency range of DC to 40 GHz. The attenuation bias and control are via a 10 pin (2x5) 0.1" pin spacing shrouded male connector to accommodate remote operations from 0 to 110 dB. The attenuation step sizes are 10 dB. The actuator control and interface circuits are custom designed and uniquely packaged within the attenuator housing. The microprocessor-based electronics ramp the speed of a precision actuator to ensure fast and accurate positioning. The RF connectors are 2.4 mm female. Other connector options are offered under different model numbers. A 9" female to female cable with 10 pin connectors is included for interface convenience.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,650.00
3 - 4$3,467.50
5 - 9$3,294.13

Bulk Pricing

Login to View Pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency40 GHz
Attenuation110 dB
Attenuation Step Size10 dB
Return Loss15 dB
Power Handling1 Watt
RF Port2.4 mm Female
Attenuator TypeProgrammable
