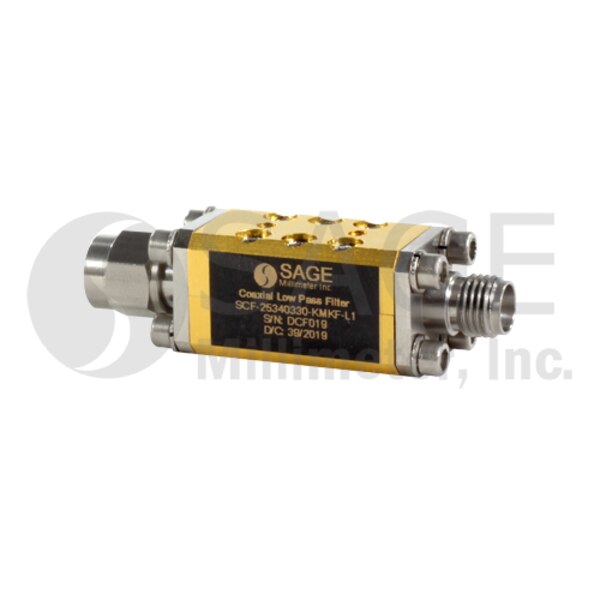

2.92 mm Coaxial Lowpass Filter

DC to 25 GHz, 30 dB Rejection from 40 to 60 GHz
SKU:SCF-25340330-KFKM-L1
Availability:1 Week ARO
SCF-25340330-KFKM-L1 is a coaxial lowpass filter with a pass band from DC to 25 GHz. The typical insertion loss of the pass band is 0.6 dB. The rejection band is from 40 to 60 GHz with a typical rejection value of 30 dB. The RF connectors of the filter are K(F) and K(M) connectors. The passband typical return loss is 15 dB. Other configurations, such as different connectors for input and output are available under different model numbers.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,450.00
5 - 9$1,305.00
10 +$1,174.50

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency25 GHz
Minimum Rejection Frequency40 GHz
Maximum Rejection Frequency60 GHz
Rejection30 dB
Insertion Loss0.6 dB
Passband Return Loss15 dB
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
