2.92 mm Coaxial Lowpass Filter

DC to 16.5 GHz, 30 dB Rejection from 26.5 to 40 GHz
SKU:SCF-17327330-KFKM-L1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

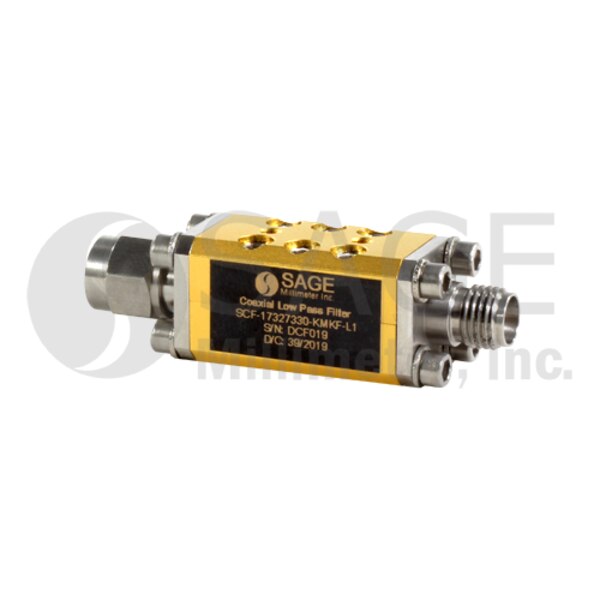

SCF-17327330-KFKM-L1 is a coaxial lowpass filter with a pass band from DC to 16.5 GHz. The typical insertion loss of the pass band is 0.6 dB. The rejection band is from 26.5 to 40 GHz with a typical rejection value of 30 dB. The RF connectors of the filter are K(F) and K(M) connectors. The passband typical return loss is 15 dB. Other configurations, such as different connectors for input and output are available under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,250.00
5 - 9 $1,125.00
10 - 24 $1,012.50

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband FrequencyDC
Maximum Passband Frequency16.5 GHz
Minimum Rejection Frequency26.5 GHz
Maximum Rejection Frequency40 GHz
Rejection30 dB
Insertion Loss0.6 dB
Passband Return Loss15 dB
Impedance50 Ohms
Power Handling1 W
RF Ports2.92 mm (F) and 2.92 mm (M)
