Coaxial Cable Assembly

DC to 110 GHz, 1 mm (M) to 1 mm (M), 3" Flexible, High Performance, Low Insertion Loss
Availability:IN STOCKPlease contact us if you need more units than what is available online.

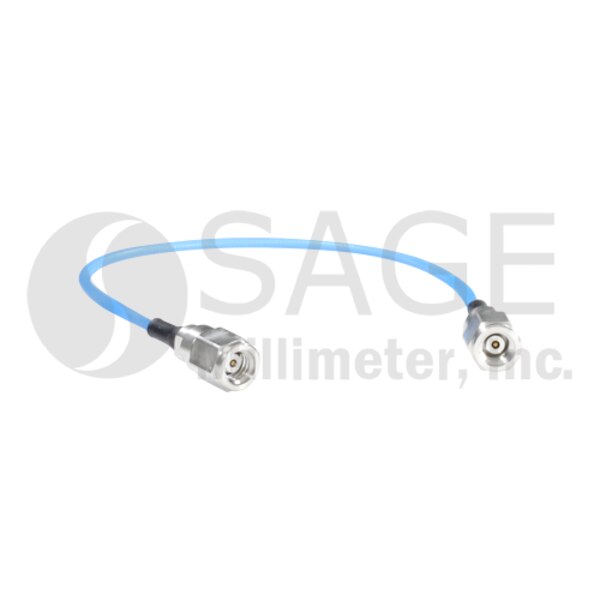

SCW-1M1M003-F1-2 is a 3" long, flexible, coaxial cable with 1 mm male connectors that cover the frequency range of DC to 110 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms. Other lengths are offered under different models.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Return Loss16 dB
Impedance50 Ohms
Cable Length3"
Cable TypeFlexible
Cable Outer Diameter0.058"
Minimum Bending Radius0.201"
Connectors1 mm Male
