High Performance Coaxial Cable Assembly

DC to 110 GHz, 1 mm (M) to 1 mm (M), 12" Semi-Rigid
SKU:SCW-1M1M012-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.

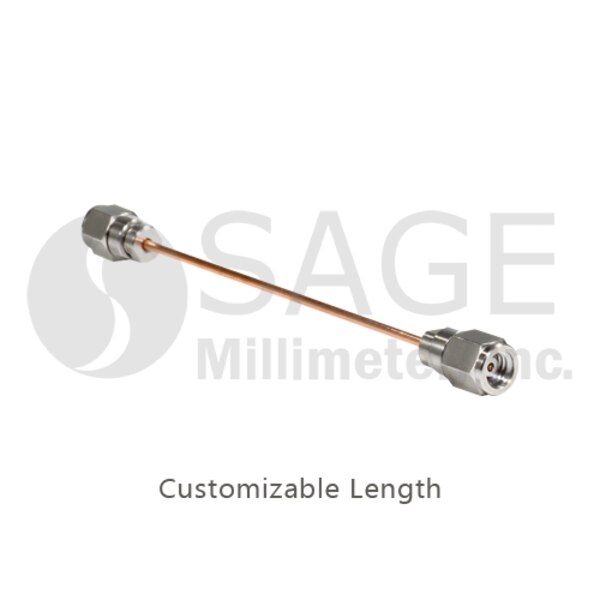

SCW-1M1M012-S1 is a 12" long, semi-rigid coaxial cable with 1 mm male connectors that cover the frequency range of DC to 110 GHz. The coaxial cable utilizes high performance material and a precision manufacturing process to guarantee superior microwave performance and mechanical durability. The impedance of the cable is 50 ohms and a capacitance of 95 pF/m. Other lengths are offered under different models.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Return Loss13 dB
Impedance50 Ohms
Cable Length12"
Cable TypeSemi-Rigid
Cable Outer Diameter0.047"
Minimum Bending Radius0.126"
Connectors1 mm Male
