Bulkhead Coaxial Adapter

DC to 110 GHz, 1.0 mm (F) to 1.0 mm (F), Thermal Vacuum Safe
SKU:SCT-1F1F-UB-B-V
Availability:IN STOCKPlease contact us if you need more units than what is available online.

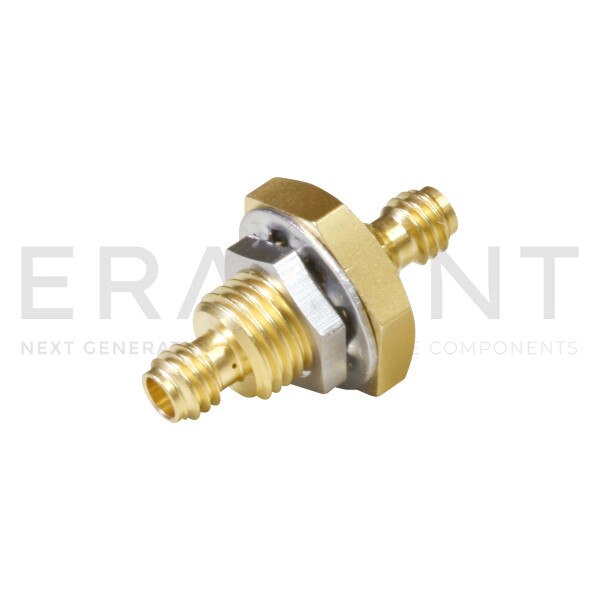

SCT-1F1F-UB-B-V is a 1 mm female to 1 mm female hermetically sealed bulkhead type coaxial adapter that covers the frequency range from DC to 110 GHz. The bulkhead adapter uses a glass bead and O-ring seal to provide a hermetically sealed RF interface between the vacuum and atmospheric environments. It is ideal for use as a coaxial RF feedthrough for testing in vacuum environments, such as a thermal vacuum chamber. It can also be used for other applications where an airtight vacuum seal is required. The bulkhead configuration gives mounting flexibility for a variety of mounting plates and flanges, such as ConFlat (CF) and KF vacuum flanges. Other configurations are available under different model numbers.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,000.00
5 - 9 $1,800.00
10 - 24 $1,620.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency110 GHz
Insertion Loss2.0 dB
Return Loss13 dB
Impedance50 Ohms
Connector GenderFemale to Female
Connector Series1.0 mm to 1.0 mm
ConfigurationPanel Mount (Bulkhead)
