Coaxial Adapter

DC to 100 GHz, SMPS (G3PO) (M) to 1 mm (M)
Availability:IN STOCKPlease contact us if you need more units than what is available online.

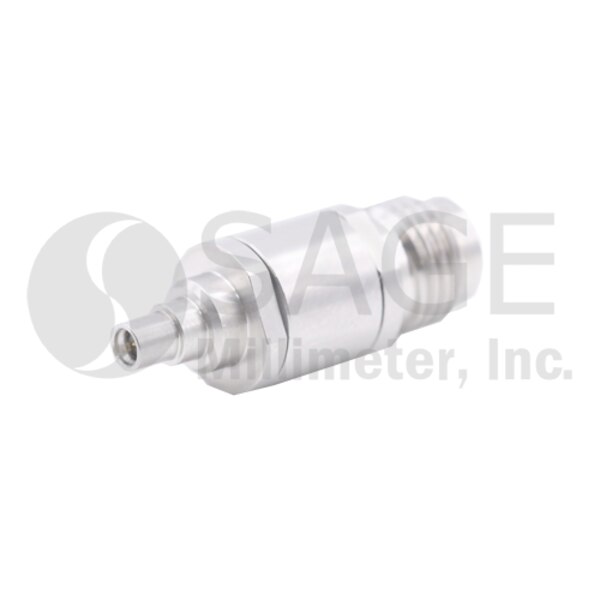

SCT-AM1M-UB is a SMPS (G3PO) male to 1 mm male coaxial adapter that covers the frequency range of DC to 100 GHz. This coaxial adapter offers efficient transitioning between the coaxial connectors with a high return loss. The impedance of the adapter is 50 Ohms. Other configurations are available under different model numbers.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 9 $900.00
10 - 24 $810.00
25 - 49 $729.00

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum FrequencyDC
Maximum Frequency100 GHz
Insertion Loss-
Return Loss14 dB
Impedance50 Ohms
Connector GenderMale to Male
Connector Series1.0 mm to SMPS
ConfigurationIn-line (180°)
