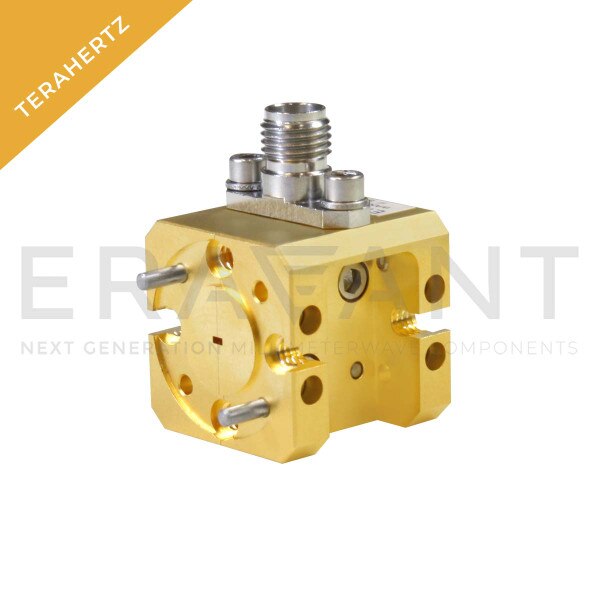

D-Band Balanced Mixer, Limited Run

110 to 130 GHz, DC to 20 GHz IF, +15 dBm LO Power, -3 dBm Input P1dB, WR-06 Waveguide
SKU:SFB-11413408-0606KF-N1-M
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFB-10-N1 as an alternative solution. Read more about Limited Run Products here.

SFB-11413408-0606KF-N1-M is a D-Band balanced mixer that utilizes high performance GaAs Schottky beam-lead diodes and a balanced circuit configuration to offer superior RF performance. The mixer supports the full waveguide band operation for RF frequency from 110 to 130 GHz with an broad IF output from DC to 20 GHz. The mixer offers a conversion loss of 8 dB typical and a high RF to LO port isolation of 30 dB. The typical input P-1 dB is around -3 dBm and RF to LO isolation is 30 dB nominally.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,000.00
3 - 4 $2,850.00
5 - 9 $2,707.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency110 GHz
Maximum RF Frequency130 GHz
Minimum LO Frequency110 GHz
Maximum LO Frequency130 GHz
Minimum IF FrequencyDC
Maximum IF Frequency20 GHz
LO Pumping Power+15 dBm
RF PortWR-15 Waveguide
