W-Band Junction Circulator

99 to 101 GHz, 15 dB Isolation, WR-10 Waveguide
SKU:SNW-9931041015-10-C1
Availability:4 to 6 Weeks ARO

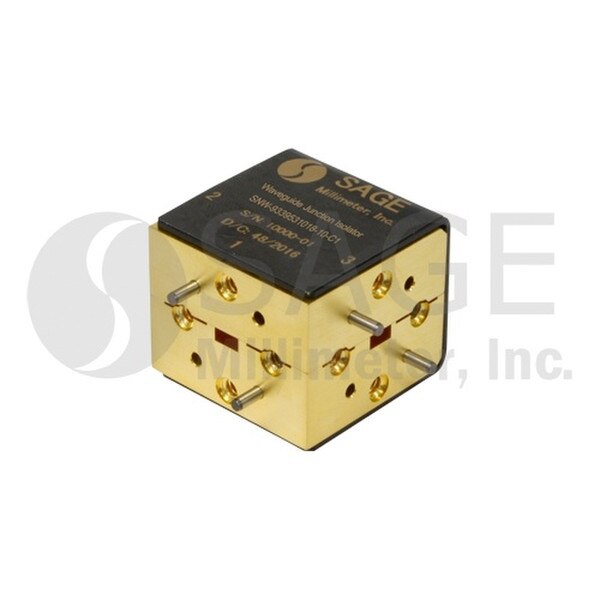

SNW-9931041015-10-C1 is a W band waveguide junction circulator that covers the frequency range of 99 to 101 GHz. Compared with a Faraday isolator, the waveguide junction circulator offers a lower insertion loss of 1.0 dB nominal and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a typical isolation of 15 dB. The input and output ports are WR-10 waveguide with UG-387/U-M flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 9 $930.00
10 - 24 $837.00
25 - 49 $753.30

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency99 GHz
Maximum Frequency101 GHz
Insertion Loss1.0 dB
Isolation15 dB
Return Loss15 dB
Forward Power Handling3 W (CW) Max
Reverse Power Handling1 W (CW) Max
RF PortWR-10 Waveguide
Device TypeCirculator
