W-Band Dual Channel, Ranging Sensor Module

94 GHz, +12 dBm Transmitting Power
SKU:SSP-94312-D1
Availability:6 to 8 Weeks ARO

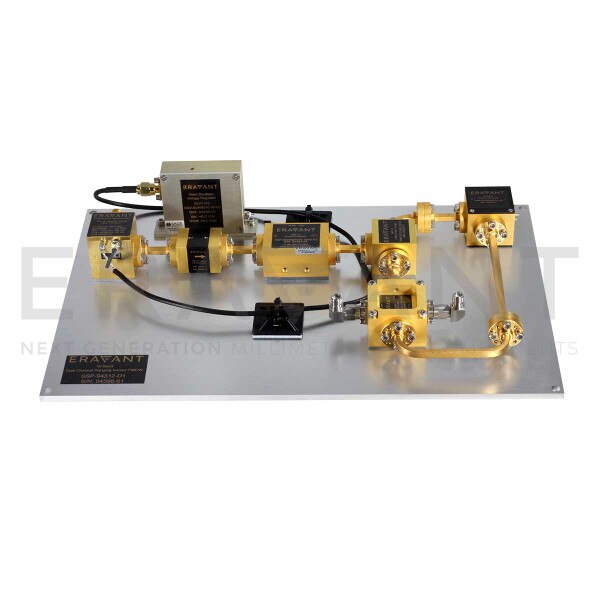

SSP-94312-D1 is a W band ranging sensor module that is designed and manufactured for medium range measurements of a moving target's speed and direction. The sensor module has an operating frequency range of 91.5 to 96.5 GHz and takes a nominal bias of +8.0 VDC/250 mA. The sensor module is configured with a varactor tuned oscillator, an isolator, an amplifier, a power divider, a circulator and a I-Q mixer. The power divider is used to sample the LO power to pump the mixer, and the circulator is used as a TX/RX diplexer. The varactor has tuning voltage range of 2.8 VDC to +30 VDC and provides ±2.5 GHz tuning bandwidth. Various antennas can be integrated with the module to form sensor heads for many system applications.
ECCN: EAR99
Login to View Pricing

Technical Details

SpecificationsRF Center Frequency: 94 GHz
TX Power: +12 dBm
Minimum IF Frequency: DC
Maximum IF Frequency: 1 GHz
Frequency Stability: -6.0 MHz/°C
DC Bias: +8 VDC/250 mA
Channel: Dual
