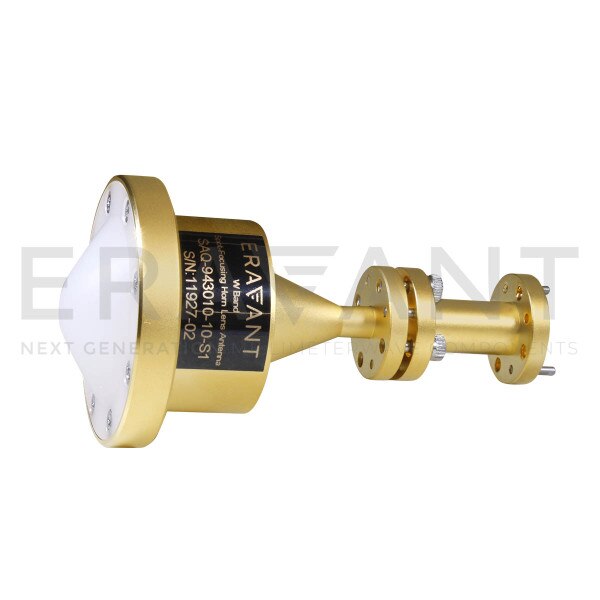

W-Band Spot-Focusing Lens Antenna

75 to 110 GHz, 1.0" Focal Length, 0.18" 10 Spot Size, WR-10 Waveguide
SKU:SAQ-943010-10-S1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAQ-943010-10-S1 is a W-band, spot-focusing lens antenna that delivers a 10 dB spot size of 0.18" diameter at the focal length of 1.0". The antenna employs a low loss lens to offer excellent aperture efficiency in full W band frequency range of 75 to 110 GHz. The lens antenna is equipped with a standard WR-10 waveguide and UG-387/U-M flange as its input port. It supports linear polarized waveforms. For the intended application, it is recommended that customers purchase spot-focusing antennas (SAQ Series) in a pair of two (Qty. 2).
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency94 GHz
Focal Length1.0"
Spot Size0.18"
PolarizationLinear
Antenna PortWR-10 Waveguide
