W-Band Three Junction Circulator

92 to 98 GHz, 35 dB Isolation, WR-10 Waveguide
SKU:SNW-9239831535-10-CM
Availability:IN STOCKPlease contact us if you need more units than what is available online.

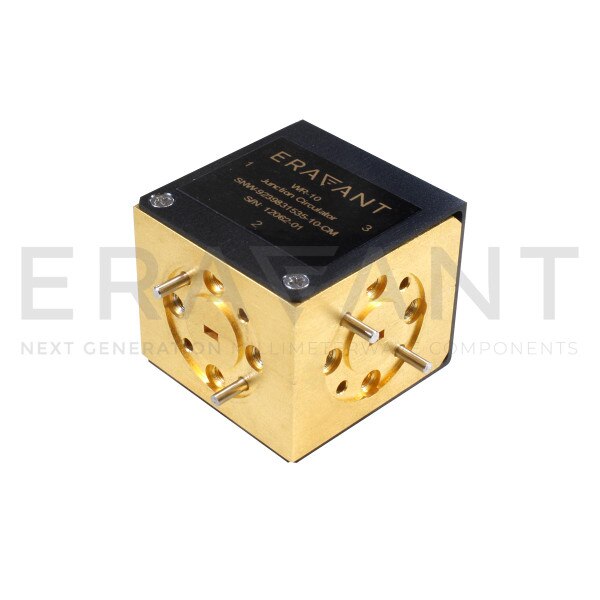

SNW-9239831535-10-CM is a W band waveguide three-junction circulator that covers the frequency range of 92 to 98 GHz. The three-junction waveguide circulator is designed and manufactured to provide a low insertion loss of 1.5 dB and a high port isolation of 35 dB between designated ports. The unit is offered for high port isolation duplexing between the transmitter and receiver. Unlike single junction circulator, the three-junction circulator offer inherent high port insertion loss from port 3 to port 1 and slightly lower isolation from port 1 to port 3 due to its unique mechanical configuration. The RF ports of the circulator are WR-10 waveguides with UG-387/U-M anti-cocking flange.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 4 $1,950.00
5 - 9 $1,755.00
10 - 24 $1,579.50

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency92 GHz
Maximum Frequency98 GHz
Insertion Loss1.5 dB
Isolation35 dB
Forward Power Handling3 W (CW)
Reverse Power Handling3 W (CW)
RF PortWR-10 Waveguide
Device TypeCirculator
