W-Band Single Channel, Ranging Sensor Module

94.0 GHz, ± 2.5 GHz Tuning Bandwidth
SKU:SSP-94312-S1

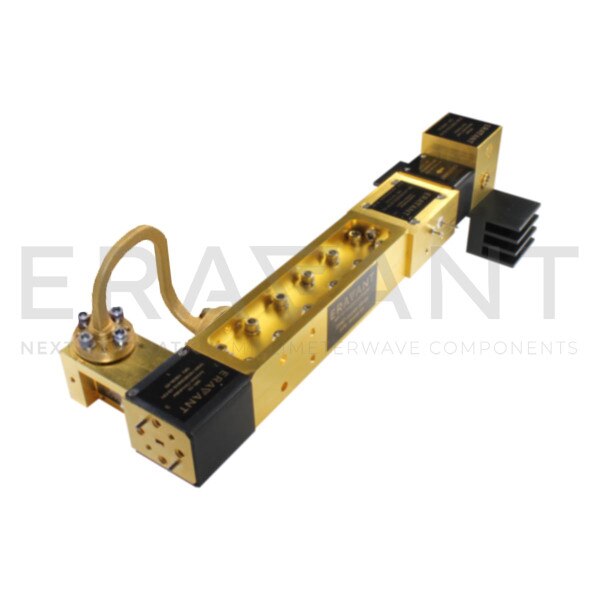

SSP-94312-S1 is a W band ranging sensor module that is designed and manufactured for medium range measurements of a moving target's speed and distance. The sensor module has an operating frequency range of 91.5 to 96.5 GHz and takes a nominal bias of +8.0 VDC/1,030 mA. The sensor module is configured with a varactor tuned oscillator, an isolator, an amplifier, a directional coupler, a circulator, and a balanced mixer. The directional coupler is used to sample the LO power to pump the mixer, and the circulator is used as a TX/RX diplexer. The varactor has tuning voltage range of 2.8 VDC to +30 VDC and provides ±2.5 GHz tuning bandwidth. Various antennas can be integrated with the module to form sensor heads for many system applications.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Quantity Price
1 $17,320.00
2 $16,454.00
3 - 4 $15,631.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

RF Center Frequency94.0 GHz
TX Power+12 dBm
FMCW Tuning Bandwidth±2.5 GHz
FMCW Tuning Voltage2.8 to +30 VDC
Minimum IF FrequencyDC
Maximum IF Frequency5 GHz
Frequency Stability-6.0 MHz/°C
Gun Bias+4,5 VDC/780 mA
Amplifier Bias+8 VDC/250 mA
ChannelSingle
