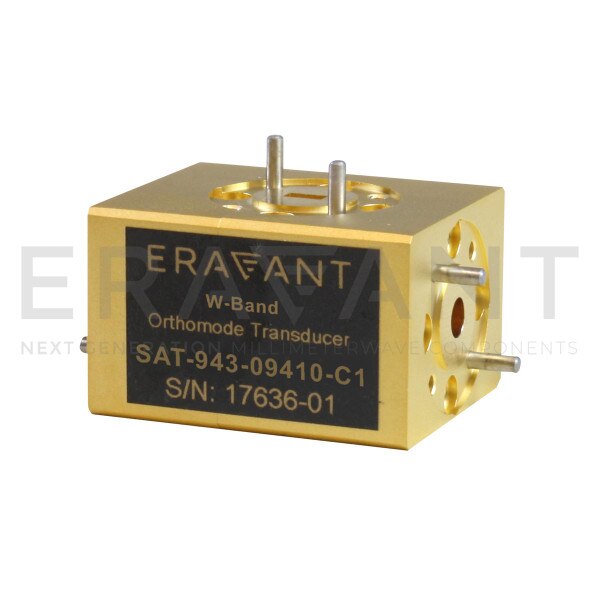

W-Band Orthomode Transducer

91.5 to 96.5 GHz, 35 dB Isolation, 35 dB Cross Polarization, 0.094" Diameter Circular Waveguide Antenna Port
SKU:SAT-943-09410-C1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SAT-943-09410-C1 is a WR-10 orthomode transducer (OMT) operating between 91.5 and 96.5 GHz. It separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform. The OMT shows high port isolation and high cross polarization cancellation while providing a low insertion loss. The OMT is configured with a 0.094" diameter circular waveguide for the antenna port and two WR-10 waveguides for the horizontal and vertical ports. All ports have standard UG-387/U-M flanges.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $2,050.00
5 - 9 $1,845.00
10 - 24 $1,660.50

Bulk Availability

QuantityAvailability
1 - 5In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency91.5 GHz
Maximum Frequency96.5 GHz
Insertion Loss, Antenna to V Port1.0 dB
Insertion Loss, Antenna to H Port1.2 dB
Isolation35 dB
Cross Polarization35 dB
Antenna Port0.094" Dia Circular WG
Horizontal and Vertical PortsWR-10 WG
