F-Band Up-Converter

90 to 140 GHz RF Output, DC to 30 GHz IF Input, WR-08 Waveguide

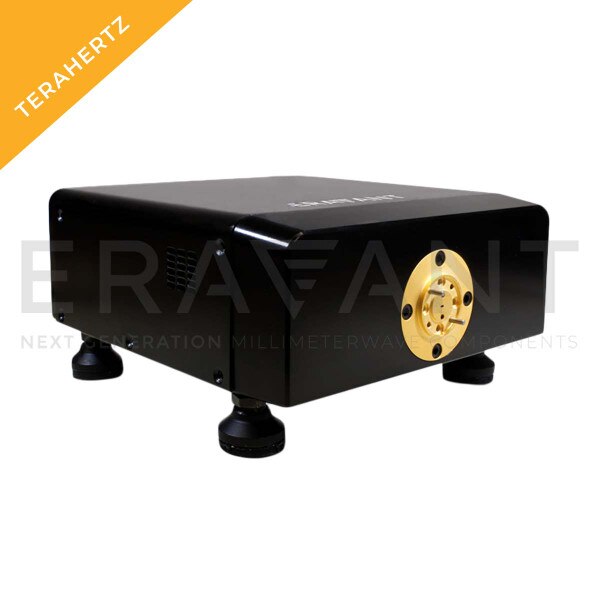

STV-00-08-S1 is a F-Band up-converter that converts IF signals from a frequency range of DC to 30 GHz with -15 dBm power to the millimeterwave frequency at 90 to 140 GHz. The up-converter requires 11.25 to 17.5 GHz at +3 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment fro millimeterwave testing purposes.

ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum IF FrequencyDC
Maximum IF Frequency30 GHz
Minimum LO Frequency11.25 GHz
Maximum LO Frequency17.5 GHz
RF PortWR-08 Waveguide
