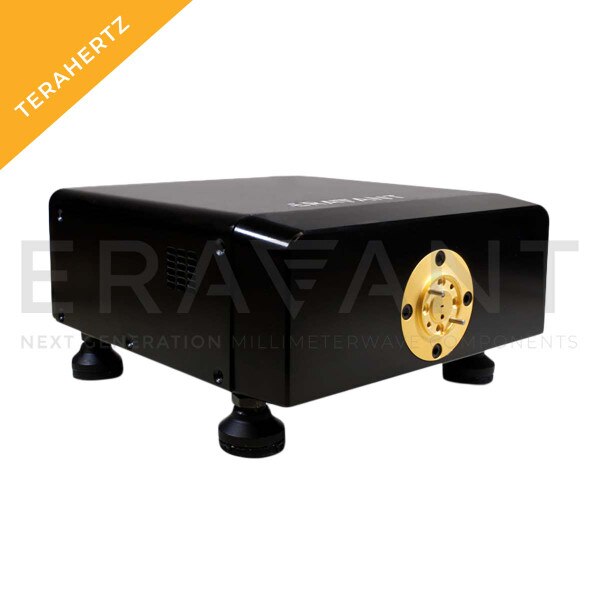

F-Band Down-Converter

90 to 140 GHz RF Input, 10 MHz to 1.6 GHz IF Output, WR-08 Waveguide
STC-20-08-S1 is an F-Band down-converter that converts millimeterwave signals from a frequency range of 90 to 140 GHz to the baseband at 10 MHz to 1.6 GHz. The down-converter requires 10.0 to 15.556 GHz at +5 dBm input power, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The down-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeterwave testing purposes.
ECCN: 3A001.b.7.d
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency1.6 GHz
Minimum LO Frequency11.25 GHz
Maximum LO Frequency17.5 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-08 Waveguide
