12th Harmonic Mixer

90 to 140 GHz RF, 5 to 12.0 GHz LO, DC to 1.6 GHz IF, WR-08 Waveguide, F-Band
SKU:SFH-08SFSF-A3-2
Availability:4 to 6 Weeks ARO

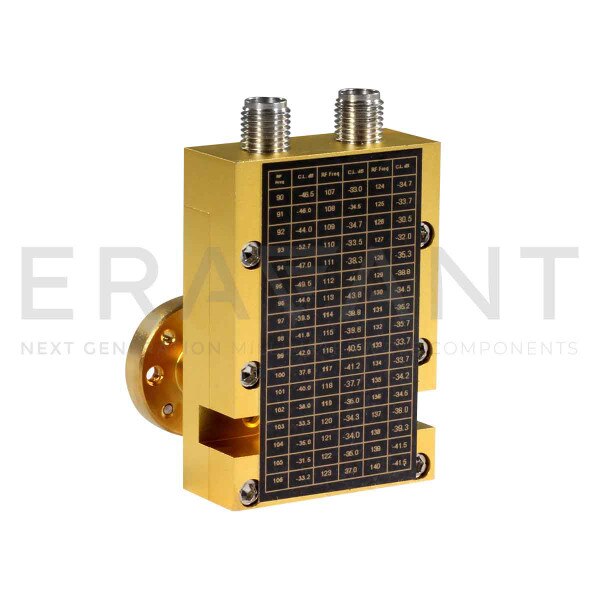

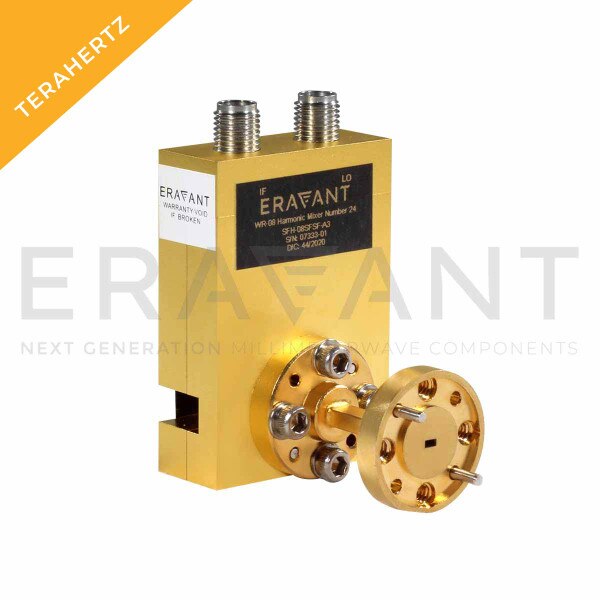

SFH-08SFSF-A3-2 is a F-Band balanced harmonic mixer that is specially designed for use with separate LO and IF ports. The mixer employs high performance, GaAs Schottky diodes and a balanced configuration to produce a superior RF performance. With an IF range of DC to 1.6 GHz, the harmonic mixer uses the harmonic number 12 of a 5.0 to 12.0 GHz LO at +16 dBm to translate 90.0 to 140.0 GHz. The harmonic mixer has a typical conversion loss of 42 dB. The mixer can be used as other even harmonic numbers, such as 10, 14, and 16 etc. with various conversion loss performance. In general, the lower the harmonics, the lower the conversion loss. Other models, such as SFH-08SFSF-A3 are offered for the spectrum models other than Keysight’s 856X series are also offered in the our website here.
ECCN: 3A001.b.7.c.1
Login to View Pricing

Bulk Pricing

Quantity Price
1 - 2 $3,650.00
3 - 4 $3,467.50
5 - 9 $3,294.13

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to View Pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum LO Frequency5.0 GHz
Maximum LO Frequency12.0 GHz
Minimum IF FrequencyDC
Maximum IF Frequency1.6 GHz
Conv. Loss42 dB
Harmonic Number12
RF PortWR-08 Waveguide
