F-Band Subharmonically Pumped Mixer

90 to 140 GHz RF, 45 to 70 GHz LO, DC to 5.0 GHz IF, +13 dBm LO Power, WR-08 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.

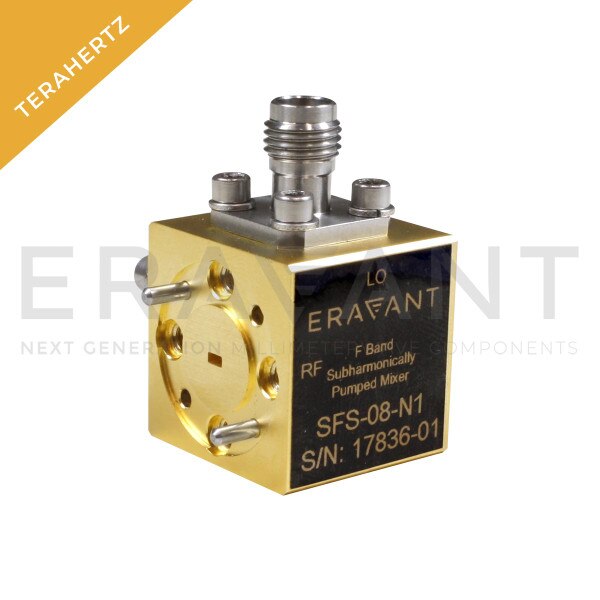

SFS-08-N1 is an F-Band sub-harmonically pumped mixer. The mixer is designed with high performance GaAs Schottky diodes and accepts an LO frequency at half the RF frequency to cover the frequency range from 90 to 140 GHz. With a low LO frequency range of 45 to 70 GHz, this mixer is well suited for low-cost F-Band system solutions as a result of half of the operating RF frequency. The mixer provides 16 dB conversion loss, 20 dB LO to RF isolation, and 30 dB LO to IF isolation. The sub-harmonically pumped mixers in other frequency bands are offered under various model numbers.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency90 GHz
Maximum RF Frequency140 GHz
Minimum LO Frequency45 GHz
Maximum LO Frequency70 GHz
Minimum IF FrequencyDC
Maximum IF Frequency5.0 GHz
LO Pumping Power+13 dBm
Conversion Loss16 dB
RF PortWR-08 Waveguide
