F-Band Tunable Load

90 to 140 GHz, 0.1 W Power Handling, WR-08 Waveguide
SKU:SWL-0820-T1
Availability:4 to 6 Weeks ARO

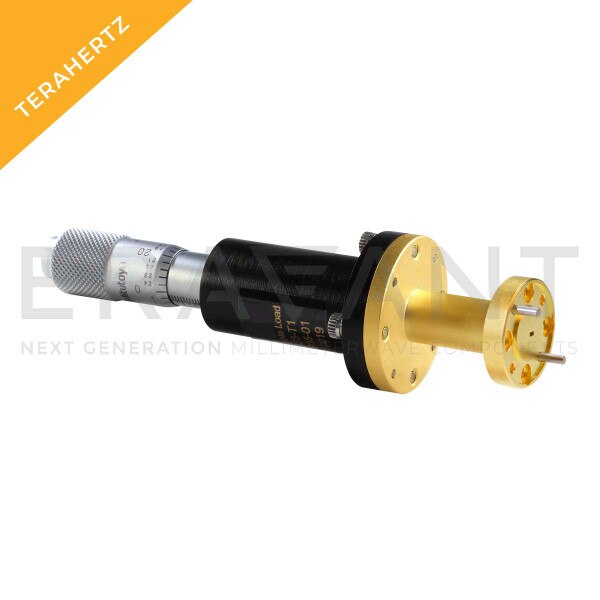

SWL-0820-T1 is an F-band tunable waveguide load that covers the frequency range of 90 to 140 GHz. The tunable load is constructed with a linear bearing and high precision Mitutoyo micrometer to guarantee smooth, long term repeatable mechanical movements. The tunable load offers 30 dB minimum return loss and up to +20 dBm RF power handling.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,300.00
5 - 9$1,170.00
10 - 24$1,053.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency90 GHz
Maximum Frequency140 GHz
Power Handling, Watts0.1 W
Power Handling, dBm20 dBm
VSWR1.10
Load TypeTunable
Waveguide PortWR-08 Waveguide
