90° Compact Waveguide Twist

WR-12 Waveguide, E-Band, 0.40" Insertion Length
Availability:IN STOCKPlease contact us if you need more units than what is available online.

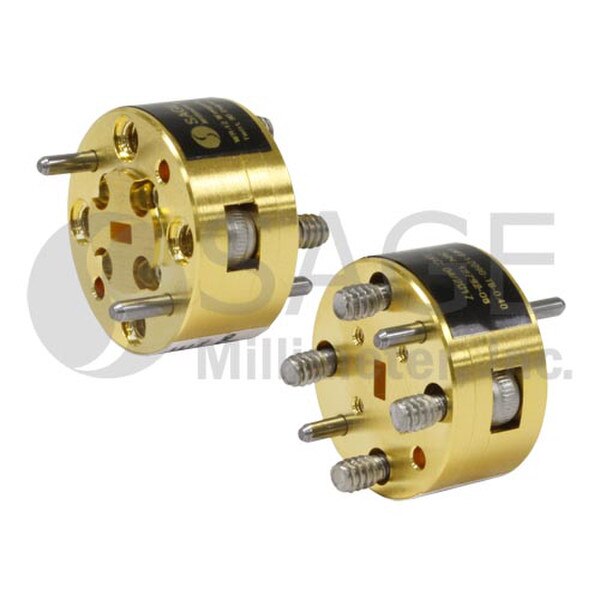

SWB-12090-TB-0.40 is a WR-12, 90°, compact waveguide twist with a UG-387/U-M flange on one end. The opposite end is compatible with a UG-387/U-M flange with 5/64 hex socket captive waveguide screws for attachment. The overall length of the twist is 0.40”. The waveguide twist is manufactured through a precision machining process to ensure high quality and ruggedness. The waveguide twist is offered to cover the frequency range of 60 to 90 GHz.

A 5/64 hex screwdriver is required to access the built-in 5/64 hex socket waveguide screws. Click here to view our 5/64 waveguide screw blog for more information.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency60 GHz
Maximum Frequency90 GHz
Angle90 Degrees
Bend Radius/Length0.40"
Waveguide SizeWR-12
