E-Band Junction Isolator

81 to 86 GHz, 18 dB Isolation, WR-12 Waveguide
SKU:SNW-8138630818-12-I1
Availability:4 to 6 Weeks ARO

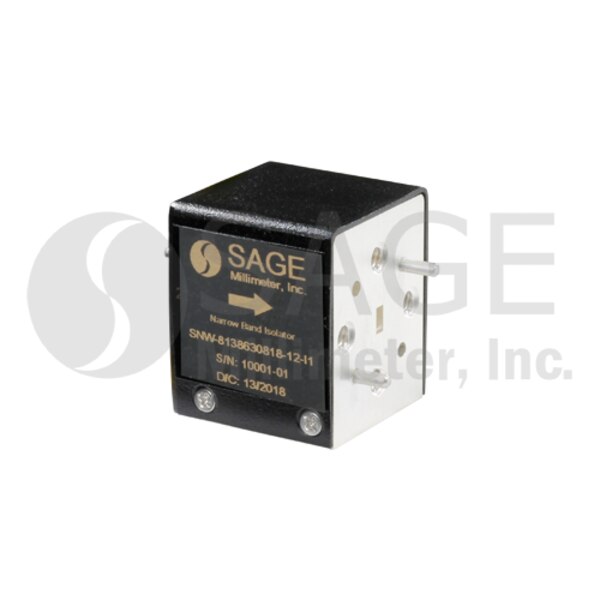

SNW-8138630818-12-I1 is an E band waveguide junction isolator that covers the frequency range of 81 to 86 GHz. Compared with a Faraday isolator, the waveguide junction isolator offers an insertion loss of 0.8 dB typical and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator only offers a nominal isolation of 18 dB. The input and output ports are WR-12 waveguides with UG-387/U flanges.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 4$1,200.00
5 - 9$1,080.00
10 +$972.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Minimum Frequency81 GHz
Maximum Frequency86 GHz
Insertion Loss0.8 dB
Isolation18 dB
Return Loss16 dB
Forward Power Handling3 W (CW)
Reverse Power Handling1 W (CW)
RF PortWR-12 Waveguide
Device TypeIsolator
