E-Band Transceiver

RX: 71 to 76 GHz, TX: 81 to 86 GHz
SKU:SSC-7438437016-1212-SR1

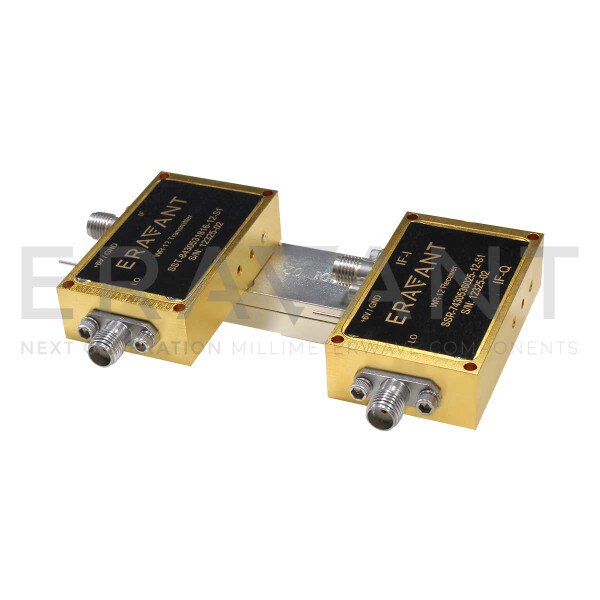

SSC-7438437016-1212-SR1 is an E-Band transceiver. The transceiver has a typical transmit output power of +16 dBm across the frequency range of 81 to 86 GHz with an IF input power of +0 dBm and frequency range of DC to 5 GHz. The receiver has a typical receiving linear conversion gain of 25 dB and noise figure of 5.0 dB in the frequency range of 71 to 76 GHz with a IF output frequency range of DC to 5 GHz. The receiver signal linear range is from -100 to -20 dBm. The required LO power and frequency range are +5 dBm, 13.5 GHz for the transmitter and 11.83 GHz for receiver channels typically. The LO and IF ports are equipped with a female SMA connectors and the RF port is a WR-12 waveguide with a UG-387/U flange. Although the module is offered in a monostatic version, bi-static version is available per request.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $14,400.00
2 $13,680.00
3 - 4 $12,996.00

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

TX RF Minimum Frequency81 GHz
TX RF Maximum Frequency86 GHz
TX Output Power+16 dBm
Conversion Gain25 dB
LO Input Power+5 dBm
RF PortWR-12 WG
