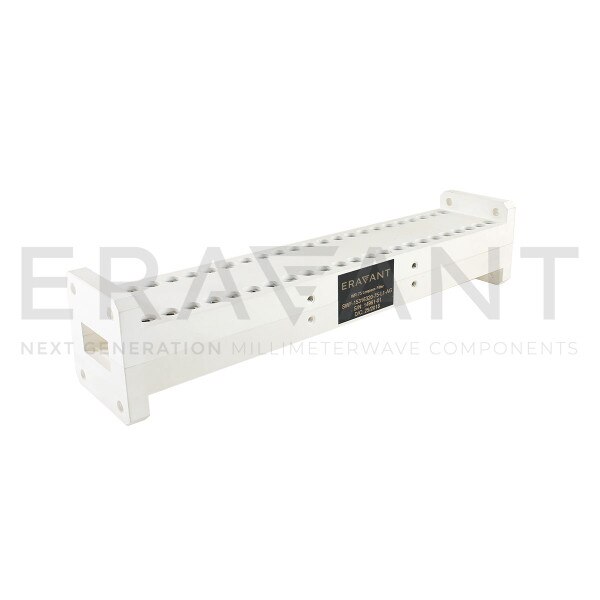

WR-75 Waveguide Lowpass Filter

8.5 to 14.5 GHz, 30 dB Rejection from DC to 7.5 GHz and 15.5 to 22.0 GHz
SKU:SWF-15316320-75-L1-AG
Availability:1 Week ARO
SWF-15316320-75-L1-AG is a WR-75 waveguide lowpass filter with a passband frequency from 8.5 to 14.5 GHz and a rejection frequency 15.5 to 22.0 GHz. Due to the waveguide cut off nature, the low side of the filter has rejection range of DC to 7.5 GHz. The filter provides a nominal insertion loss of 1.0 dB across its passband and a typical rejection of 30 dB at 15.5 GHz. Since the high end cutoff frequency can be changed by modifying the design, custom designs can be offered under different model numbers.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,650.00
5 - 9$1,485.00
10 - 24$1,336.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Passband Frequency8.5 GHz
Maximum Passband Frequency14.5 GHz
Minimum Rejection Frequency, Low SideDC
Maximum Rejection Frequency, Low Side7.5 GHz
Minimum Rejection Frequency, High Side15.5 GHz
Maximum Rejection Frequency, High Side22 GHz
Rejection30 dB
Waveguide PortWR-75 Waveguide
