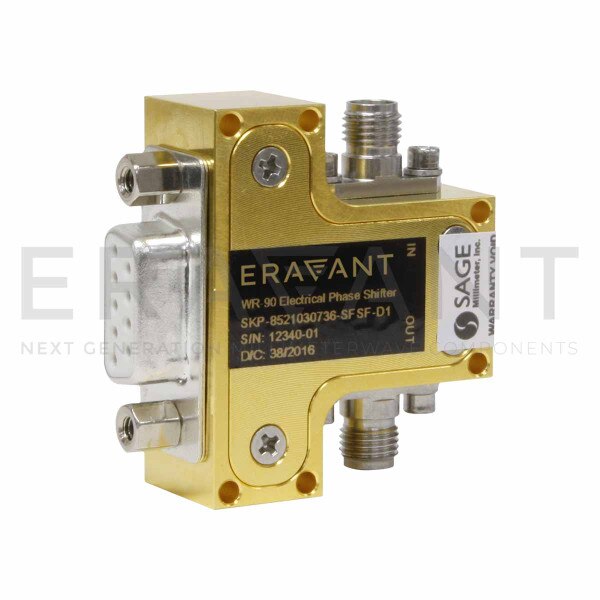

Digitally Controlled Electrical Phase Shifter

8.5 to 10.5 GHz, 0 to 360° Phase Shifting Range, SMA (F)
SKU:SKP-8521030936-SFSF-D1
Availability:Contact Us for Quote
SKP-8521030936-SFSF-D1 is a 6-bit digitally controlled phase shifter that covers the frequency range of 8.5 to 10.5 GHz. The phase shifter can be used in many applications such as transmit/receive modules and phased arrays. The phase shifter exhibits 9.0 dB typical insertion loss and offers a 360 degree phase shifting range and phase accuracy of ±5 degrees.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency8.5 GHz
Maximum Frequency10.5 GHz
Insertion Loss9 dB
Phase Shifting Range0 - 360°
Bias±5 V/10 mA
Switching Speed50 ns
Power Handling+25 dBm
Control TypeDigital
RF PortSMA (F)
