X-Band Orthomode Transducer

8.2 to 12.4 GHz, 30 dB Isolation, 35 dB Cross Polarization, 0.900" x 0.900" Square Waveguide Antenna Port
SKU:SAT-FX-90090-S1
Availability:1 Week ARO

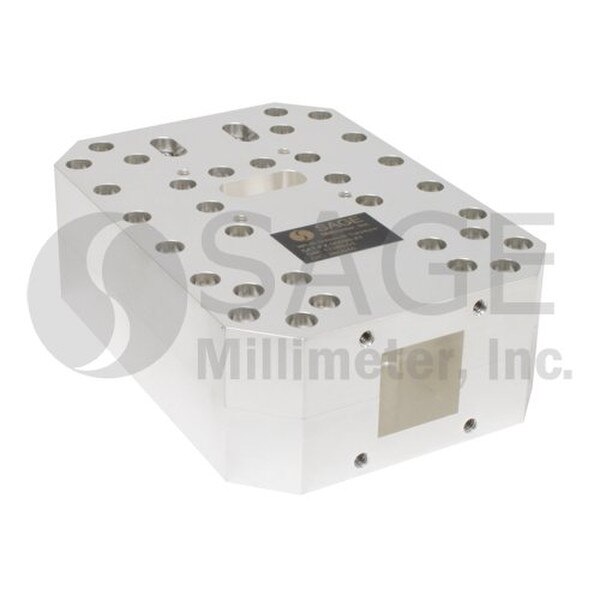

SAT-FX-90090-S1 is a WR-90 orthomode transducer (OMT) operating between 8.2 and 12.4 GHz. It separates a circular or elliptical polarized waveform into two linear, orthogonal waveforms or combines two linear polarized waveforms into one circular or elliptical polarized waveform. The OMT shows high port isolation and high cross polarization cancellation while providing a low insertion loss. The OMT is configured with a 0.900" x 0.900" square waveguide for the antenna port and two WR-90 waveguides for the horizontal and vertical ports. All ports have standard UG-39/U flanges.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,850.00
5 - 9$1,665.00
10 - 24$1,498.50

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency8.2 GHz
Maximum Frequency12.4 GHz
Insertion Loss, Antenna to V Port0.3 dB
Insertion Loss, Antenna to H Port0.3 dB
Isolation30 dB
Cross Polarization35 dB
Antenna Port0.900" x 0.900" Square WG
Horizontal and Vertical PortsWR-90 WG
