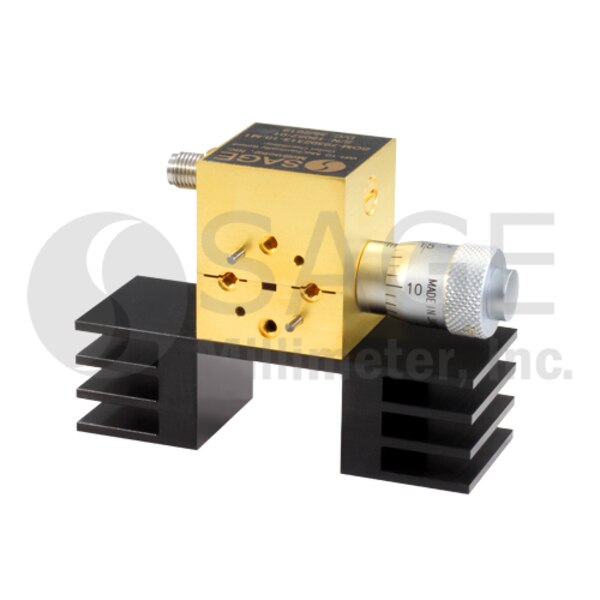

W-Band Mechanically Tuned Gunn Oscillator

79 GHz, ±1.0 GHz Tuning Bandwidth, +13 dBm Output Power, WR-10 Waveguide
SKU:SOM-79302313-10-M1
Availability:1 to 2 Weeks ARO
SOM-79302313-10-M1 is a W-Band, mechanically tuned Gunn oscillator that utilizes a high-performance GaAs Gunn diode and proprietary cavity design to deliver +13 dBm typical power. The oscillator features a frequency tuning range of 78 to 80 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,600.00
3 - 4$3,420.00
5 +$3,249.00

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency79 GHz
Output Power+13 dBm
Mechanical Tuning Range±1000 MHz
Bias Tuning Range (+4.0 to +5.0 VDC)±100 MHz
Bias+4.5 VDC/350 mA
RF PortWR-10 Waveguide
Mechanical TuningMicrometer
