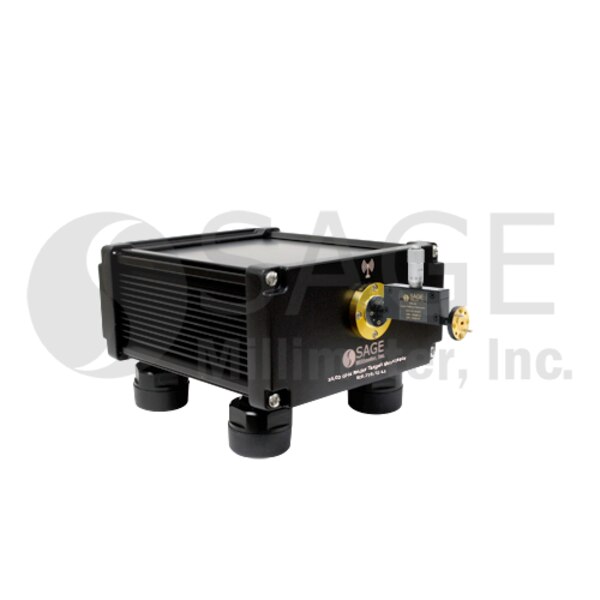

Level Setting Radar Target Simulator, Limited Run

76.5 GHz, WR-12, DC to 250 MHz I/Q Frequency, 30 dB Carrier Rejection, 20 dB Image Rejection
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STR-743-12-L1 and STR-793-12-L1 as alternative solutions. Read more about Limited Run Products here.

STR-773-12-L1 is a radar doppler simulator that operates at 76.5 GHz with a bandwidth of ±250 MHz and a WR-12 waveguide input/output. The simulator utilizes a single-sideband-modulator to modulate the incoming signal transmitted by the radar under test and sends back either a higher or lower band signal through a diplexer. The frequency-shifted signal is transmitted back to the radar under test as the Doppler signal. Target characteristics can be adjusted by changing the I and Q channel frequency and phase. The routing attenuation is adjusted by the level setting attenuator which can be calibrated to simulate the radar cross section (RCS).
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency76.5 GHz
RF Bandwidth±250 MHz
Carrier Rejection30 dB
Image Rejection20 dB
I/Q Frequency MinimumDC
I/Q Frequency Maximum250 MHz
RF PortWR-12 Waveguide
I/Q PortsSMA (F)
