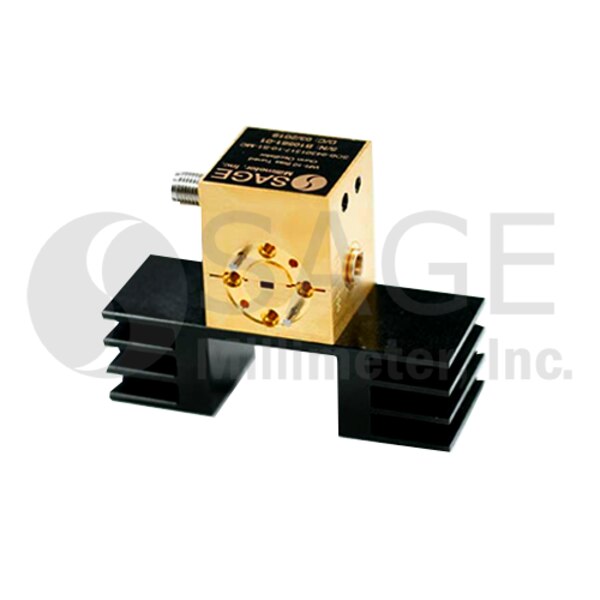

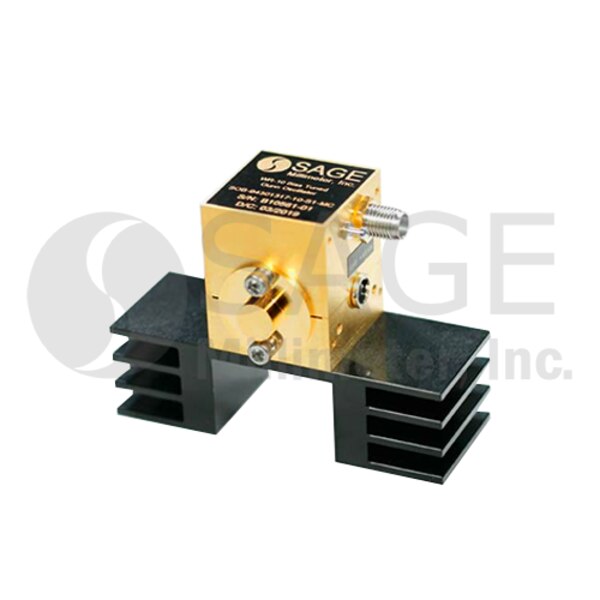

E-Band Bias Tuned Gunn Oscillator

76.5 GHz, ±250 MHz Tuning Bandwidth, +17 dBm Output Power, WR-12 Waveguide
SKU:SOB-77305217-12-S1
Availability:1 to 2 Weeks ARO
SOB-77305217-12-S1 is an E-band, bias tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +17 dBm typical power, useful for phase-locking and electrical tuning applications. The oscillator features a bias frequency tuning range of 76.25 to 76.7.5 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned mechanically. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 2$3,350.00
3 - 4$3,182.50
5 +$3,023.38

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency76.5 GHz
Output Power+17 dBm
Mechanical Tuning Range±100 MHz
Bias Tuning Range (+4.2 to +5.2 VDC)±250 MHz
Bias+4.6 VDC/750 mA
RF PortWR-12 Waveguide
Mechanical TuningSelf-Locking Set Screw
