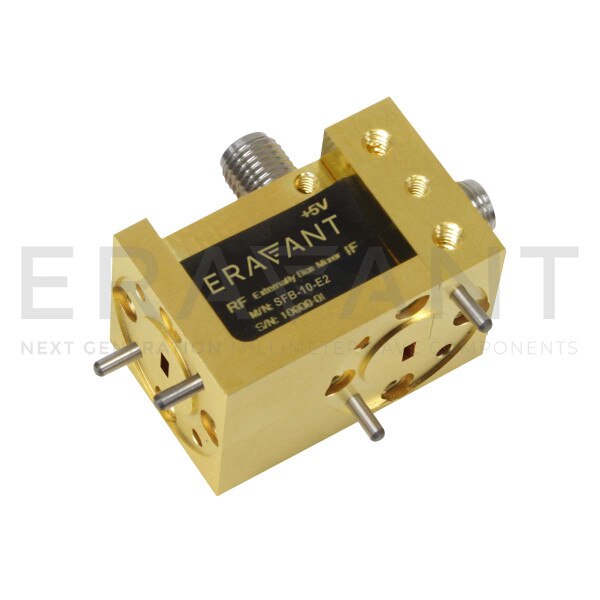

W-Band Externally Biased Balanced Upconverter

75 to 110 GHz, DC to 35 GHz IF, +3 dBm LO Power, WR-10 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.
SFU-10-E2 is a W-Band, externally biased, balanced upconverter. The upconverter supports the full waveguide band operation for both LO and RF frequencies from 75 to 110 GHz with an extremely broad IF output from DC to 35 GHz. The upconverter offers a typical conversion loss of 10 dB and a high IF to LO port isolation. The main advantage of using an externally biased upconverter is that it only requires a local oscillator (LO) power of 0 to +5 dBm when a bias of +5 VDC is applied. This eliminates the need for an expensive local oscillator, making system integrations more affordable.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency75 GHz
Maximum RF Frequency110 GHz
Minimum LO Frequency75 GHz
Maximum LO Frequency110 GHz
Minimum IF FrequencyDC
Maximum IF Frequency35 GHz
LO Pumping Power+3 dBm
Conversion Loss10 dB
RF PortWR-10 Waveguide
