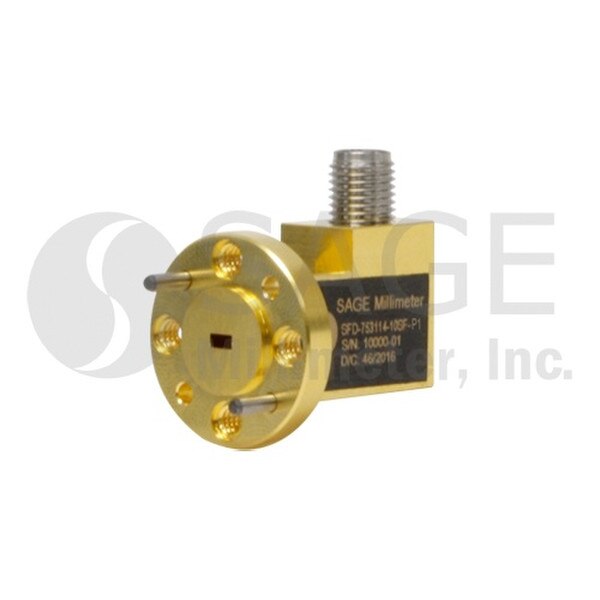

W-Band Positive Amplitude Detector, Limited Run

75 to 110 GHz, 800 mV/mW Sensitivity, WR-10 Waveguide
SKU:SFD-753114-10SF-P1
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider SFD-753114-103-10SF-P1 as an alternative solution. Read more about Limited Run Products here.

SFD-753114-10SF-P1 is a W Band amplitude detector that can be used for full or narrow band applications. The detector is zero biased and intended for small signal detection purposes. With a distinct circuitry design and careful diode selection, the detector exhibits high sensitivity and extremely flat output characteristics. The detector is designed to have a 10 MHz video bandwidth and a 1 milliohm video output impedance. The minimum detectable signal level is approximately -50 dBm.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 4 $1,440.00
5 - 9 $1,296.00
10 - 24 $1,166.40

Bulk Availability

QuantityAvailability
1 In Stock

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Sensitivity800 mV/mW
Sensitivity Flatness±2.0 dB
RF Input Power-20 dBm
Video Bandwidth10 MHz
Output Voltage PolarityPositive
RF PortWR-10 Waveguide
DC PortSMA (F)
