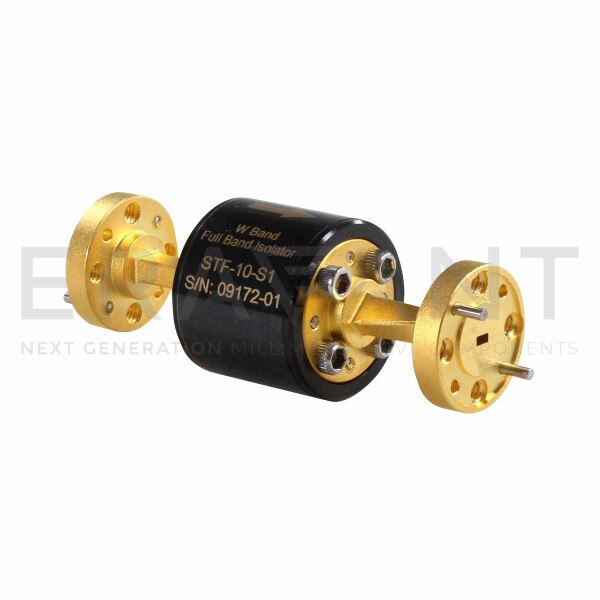

W-Band Faraday Isolator

75 to 110 GHz, 28 dB Isolation, 1.5 dB Insertion Loss, WR-10 Waveguide, 90° Twist
SKU:STF-10-91
Availability:IN STOCKPlease contact us if you need more units than what is available online.
STF-10-91 is a full band Faraday isolator that operates from 75 to 110 GHz. The Faraday isolator is constructed with a longitudinal, magnetized ferrite rod that causes a Faraday rotation of the incoming RF signal. The Faraday isolator offers 28 dB typical isolation and 1.5 dB nominal insertion loss with good flatness. The input and output ports are WR-10 waveguides with UG-387/U-M flanges and feature a 90° twist.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 4$1,100.00
5 - 9$990.00
10 - 24$891.00

Bulk Pricing

Login to View Pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss1.5 dB
Isolation28 dB
VSWR1.4
Power Handling1.0 W
RF PortWR-10 Waveguide
