W-Band Phase Shifter, Limited Run

75 to 110 GHz, 0 to 180° Range, WR-10 Waveguide
Availability:IN STOCKPlease contact us if you need more units than what is available online.
This is a Limited Run model, so inventory may not be restocked. Customers who anticipate long-term requirements should consider STP-18-10-M1 as an alternative solution. Read more about Limited Run Products here.

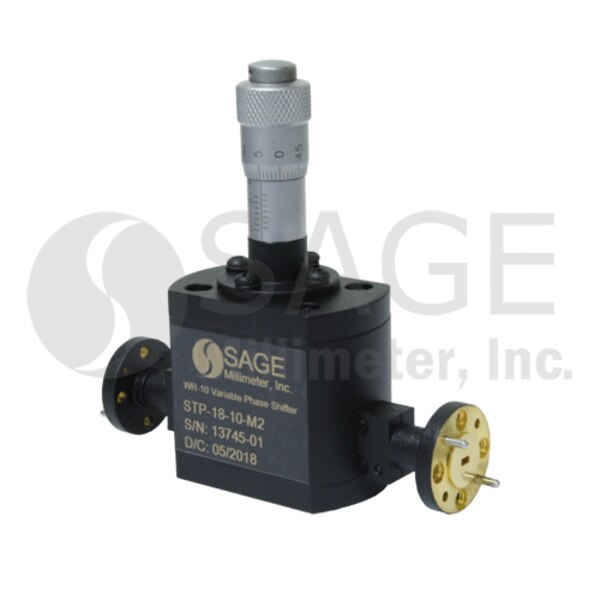

STP-18-10-M2 is a W Band, micrometer-driven WR-10 waveguide phase shifter that covers the frequency range of 75 to 110 GHz. The phase shifter has a micrometer dial which allows for repeatable phase shift settings. The phase shifter is an ideal piece of equipment in waveguide systems where broadband phase shifting is required. The phase shifter exhibits a 0.5 dB typical insertion loss and an adjustable phase range of up to 180 degrees.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency75 GHz
Maximum Frequency110 GHz
Insertion Loss0.5 dB
Phase Shifting Range0 to 180°
Power Handling0.60 W
Input/OutputWR-10 Waveguide
