E-Band Mechanically Tuned Gunn Oscillator

75 GHz, ±5 GHz Tuning Bandwidth, +16 dBm Output Power, WR-12 Waveguide
SKU:SOM-75310316-12-M1

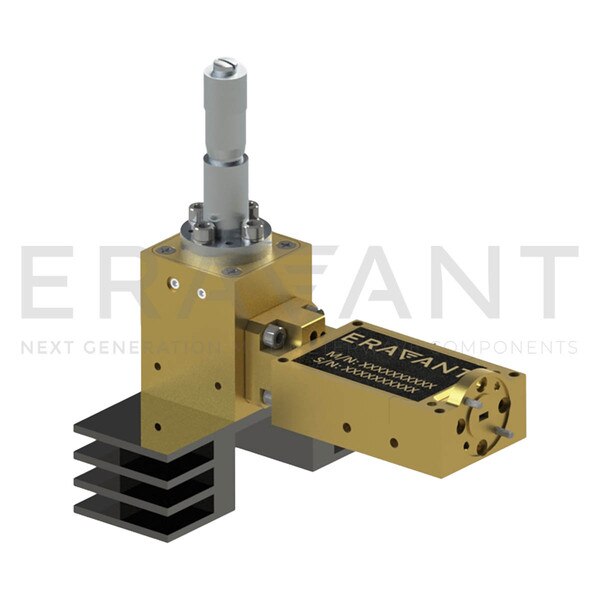

SOM-75310316-12-M1 is an E-Band, wide mechanical tuning bandwidth Gunn oscillator that utilizes a high-performance GaAs Gunn diode and proprietary cavity design to deliver +16 dBm typical power with low AM/FM noise and harmonic emissions. The oscillator has a center frequency of 75 GHz and a mechanical tuning range of ±5 GHz. It utilizes a fundamental Ka band broad tuning bandwidth Gunn oscillator and an active x2 multiplier to reach 70 to 80 GHz with +16 dBm output power. The Gunn oscillator is equipped with a micrometer for quick frequency tuning when used as a bench top unit. Models with a self-locking set screw for frequency tuning are available under a different model number for use in system integration applications. The performance of the oscillator can be further enhanced by adding an optional integrated isolator, Gunn oscillator modulator/regulator, and temperature heater.
ECCN: 3A001.b.7
Login to view pricing

Bulk Pricing

Quantity Price
1 $7,450.00
2 $7,077.50
3 - 4 $6,723.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency75 GHz
Output Power+16 dBm
Mechanical Tuning Range±5 GHz
Bias Tuning Range-
Bias+8 VDC/400 mA
RF PortWR-12 Waveguide
Mechanical TuningMicrometer
