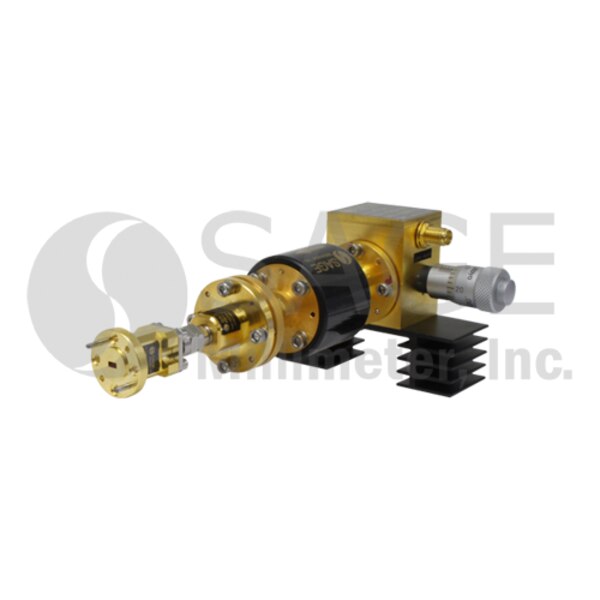

E-Band Mechanically Tuned Gunn Oscillator with Isolator

75 GHz, ±10.00 GHz Tuning Bandwidth, +5 dBm Output Power, WR-12 Waveguide
SKU:SOM-75320305-12-MI
Availability:6 to 8 Weeks ARO
SOM-75320305-12-MI is an E-Band, mechanically tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +5 dBm typical power. The oscillator features a frequency tuning range of 65 to 85 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. In addition, this model features an integrated isolator to achieve a more stable performance. The Gunn oscillator's frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a micrometer for quick frequency tuning and test bench applications. Models with a self-locking set screw for system integration are available under a different model number. The performance of the oscillator can be further enhanced by adding a Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
To view pricing or check order status

Bulk Pricing

QuantityPrice
1 - 1$8,650.00
2 - 2$8,217.50
3 +$7,806.63

Bulk Pricing

Sign In / Create An Account to view pricing

Technical Details

Center Frequency75 GHz
Output Power+5 dBm
Mechanical Tuning Range±10000 MHz
Bias Tuning Range (+4.0 to +5.0 VDC)±100 MHz
Bias+5.0 VDC/900 mA
RF PortWR-12 Waveguide
Mechanical TuningMicrometer
