E-Band Electrical Attenuator

71 to 86 GHz, 25 dB Attenuation, WR-12 Waveguide, Positive Bias
Availability:1 Week ARO

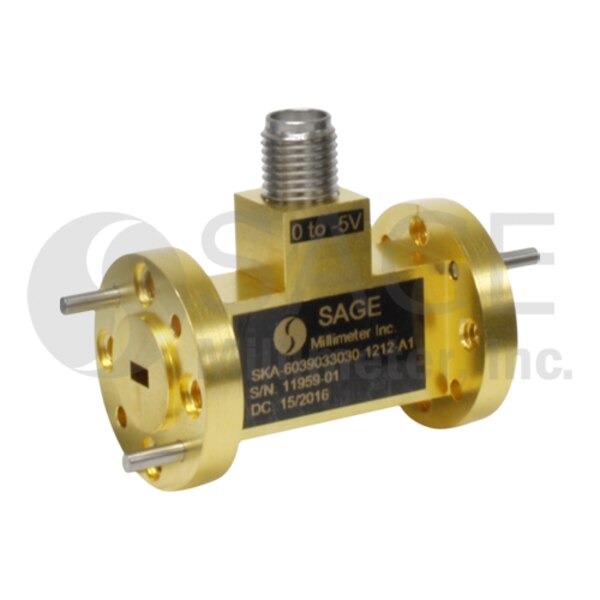

SKA-7138633030-1212-AP is an E-Band, PIN diode based electrical attenuator. The attenuator exhibits 2.5 dB typical insertion loss and 25 dB typical attenuation across the frequency range of 71 to 86 GHz. The attenuator can also cover the entire E-Band frequency range with slight performance degradation at the high and low ends of the band. The control voltage of the standard model is 0 to +5 VDC with a typical current draw of 5 mA. However, the attenuator can also be configured with a negative control voltage from 0 to -5 VDC. The control speed of the attenuator can go up to 100 ns. The RF input and output ports are WR-12 waveguides with UG-387/U flanges, and a female SMA coaxial connector provides the control signal.
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $2,750.00
3 - 4 $2,612.50
5 - 9 $2,481.88

Bulk Availability


Bulk Pricing

Login to view pricing

Technical Details

Minimum Frequency71 GHz
Maximum Frequency86 GHz
Insertion Loss2.5 dB
Attenuation25 dB
Power Handling+20 dBm
Control Bias0 to +5 VDC/5 mA
Control Speed100 ns
RF PortWR-12 Waveguide
