E-Band Subharmonically Pumped Quadrature Mixer

70 to 76 GHz RF, 35 to 38 GHz LO, DC to 5 GHz IF, +4 dBm LO Power, WR-12 Waveguide
SKU:SFT-70376315-12KFSF-E1-M
Availability:IN STOCKPlease contact us if you need more units than what is available online.

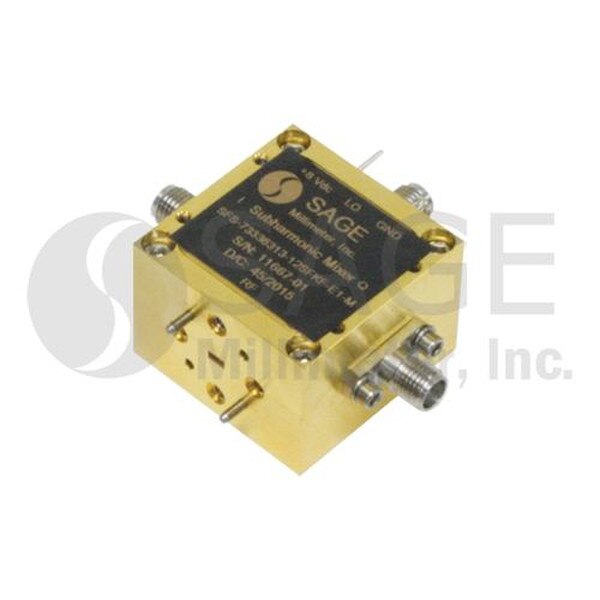

Model SFT-70376315-12KFSF-E1-M is an E Band subharmonically pumped quadrature mixer that utilizes high performance GaAs MMIC chips to offer a superior RF performance. The mixer operates from 70 to 76 GHz with 15 dB nominal conversion loss. The required LO frequency and power are 35 to 38 GHz and +16 dBm, respectively. The amplitude imbalance is within ±1 dB and the phase imbalance is ±20 degrees typically. The IF frequency ranges from DC to 5 GHz with good RF to LO port isolation.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency70 GHz
Maximum RF Frequency76 GHz
Minimum LO Frequency35 GHz
Minimum LO Frequency38 GHz
Minimum IF FrequencyDC
Minimum IF Frequency5 GHz
LO Pumping Power+4 dBm
Conv. Loss15 dB
RF PortWR-12 Waveguide
