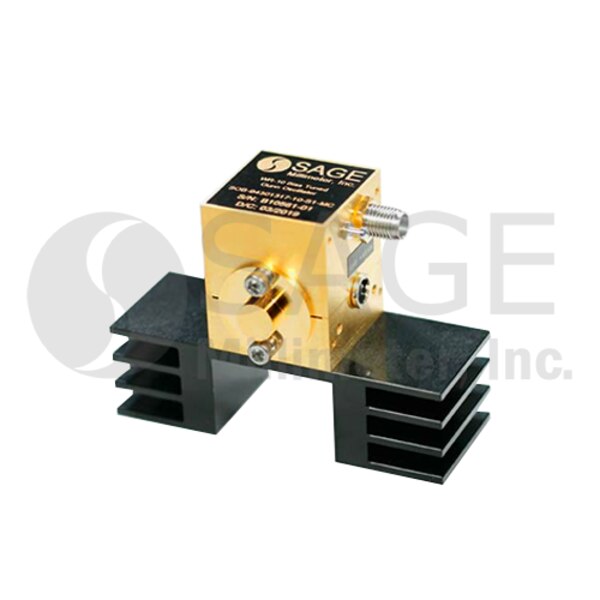

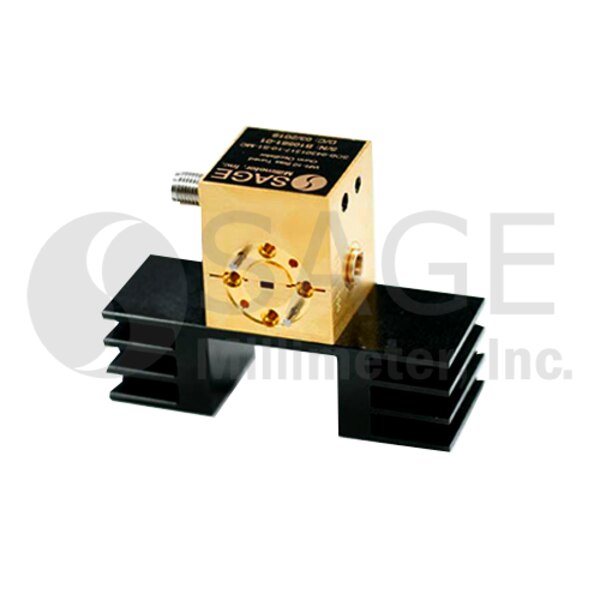

E-Band Bias Tuned Gunn Oscillator

68.5 GHz, ±250 MHz Tuning Bandwidth, +17 dBm Output Power, WR-12 Waveguide
SKU:SOB-69305217-12-S1
Availability:1 to 2 Weeks ARO
SOB-69305217-12-S1 is an E-band, bias tuned Gunn oscillator that utilizes a high performance GaAs Gunn diode and proprietary cavity design to deliver +17 dBm typical power, useful for phase-locking and electrical tuning applications. The oscillator features a bias frequency tuning range of 68.25 to 68.7.5 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator's frequency can also be tuned mechanically. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to View Pricing

Bulk Pricing

QuantityPrice
1 - 2$3,250.00
3 - 4$3,087.50
5 - 9$2,933.13

Bulk Pricing

Login to View Pricing

Technical Details

Center Frequency68.5 GHz
Output Power+17 dBm
Mechanical Tuning Range±100 MHz
Bias Tuning Range (+5.0 to +6.0 VDC)±250 MHz
Bias+5.5 VDC/750 mA
RF PortWR-12 Waveguide
Mechanical TuningSelf-Locking Set Screw
