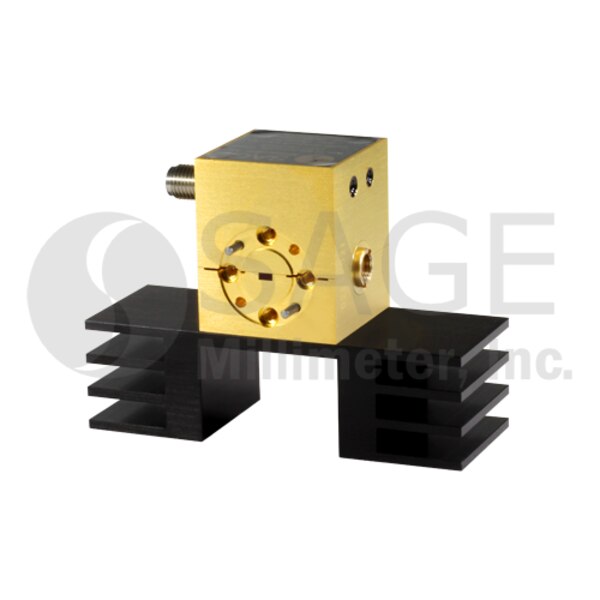

V-Band Mechanically Tuned Gunn Oscillator

64.5 GHz, ±250 MHz Tuning Bandwidth, +18 dBm Output Power, WR-15 Waveguide
SKU:SOM-65305218-15-S2
Availability:4 to 6 Weeks ARO
SOM-65305218-15-S2 is a V-band, mechanically tuned Gunn oscillator that utilizes a high-performance InP Gunn diode and proprietary cavity design to deliver +18 dBm typical power. The oscillator features a frequency tuning range of 64.25 to 64.75 GHz and delivers low AM/FM noise and harmonic emissions. Compared to its counterparts, such as multiplier based sources, the Gunn oscillator is a lower cost and cleaner source. The Gunn oscillator’s frequency can also be tuned by varying the bias voltage, which is useful for phase-locking and electrical-tuning applications. The Gunn oscillator is equipped with a self-locking set screw for frequency trimming. Models with a micrometer for lab and test bench applications are available under a different model number. The performance of the oscillator can be further enhanced by adding an optional isolator, Gunn oscillator modulator/regulator and temperature heater.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 - 2 $3,850.00
3 - 4 $3,657.50
5 - 9 $3,474.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Center Frequency64.50 GHz
Output Power+18 dBm
Mechanical Tuning Range±250 MHz
Bias Tuning Range (+4.5 to +5.5 VDC)±100 MHz
Bias+10.0 VDC/750 mA
RF PortWR-15 Waveguide
Mechanical TuningSelf-Locking Set Screw
