E-Band Up-Converter

60 to 90 GHz RF Output, DC to 12 GHz IF Input, WR-12 Waveguide
SKU:STV-00-12-S1
Availability:Contact Us for Quote

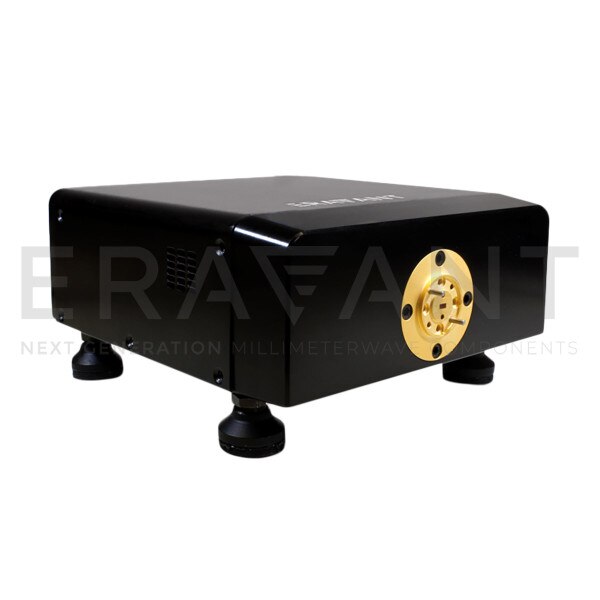

STV-00-12-S1 is a E-Band up-converter that converts IF signals from a frequency range of DC to 12 GHz with -5 dBm power to the millimeterwave frequency at 60 to 90 GHz. The up-converter requires 7.5 to 11.25 GHz at +5 dBm input power as its LO, which can be obtained from a standard 20 GHz synthesizer, such as Eravant model SOT-02220313200-SF-B6. The up-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment fro millimeterwave testing purposes.
ECCN: 3A001.b.4
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum IF FrequencyDC
Maximum IF Frequency12 GHz
Minimum LO Frequency7.5 GHz
Maximum LO Frequency11.25 GHz
RF PortWR-12 Waveguide
