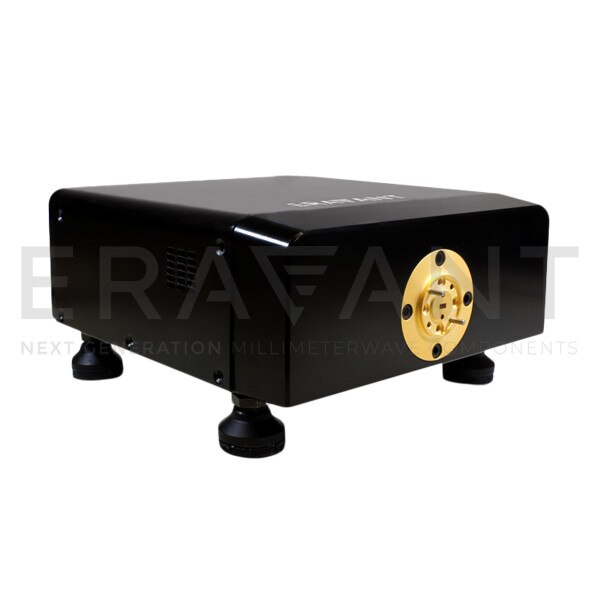

E-Band Down-converter

60 to 90 GHz RF Input, 10 MHz to 12 GHz IF Output, WR-12 Waveguide
SKU:STC-N15-12-S1
STC-N15-12-S1 is a E-Band down-converter that converts millimeter wave signals from a frequency range of 60 to 90 GHz to the baseband at 1.6 GHz. The down-converter requires 7.5 to 11.25 GHz at +5 dBm input power as its LO. The down-converter has low harmonic levels and excellent gain flatness, making it a good candidate to extend low frequency test equipment for millimeter wave testing purposes.
ECCN: EAR99
Login to view pricing

Bulk Pricing

Quantity Price
1 $8,650.00
2 $8,217.50
3 - 4 $7,806.63

Bulk Availability

QuantityAvailability

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency12 GHz
Minimum LO Frequency7.5 GHz
Maximum LO Frequency11.25 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-12 WG
