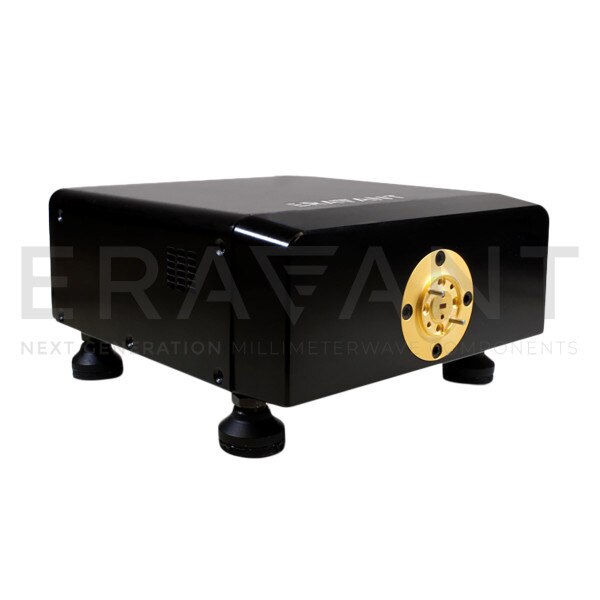

E-Band Phase Noise Analyzer Down-Converter

60 to 90 GHz RF Input, 10 MHz to 1.6 GHz IF Output, WR-12 Waveguide
Availability:IN STOCK

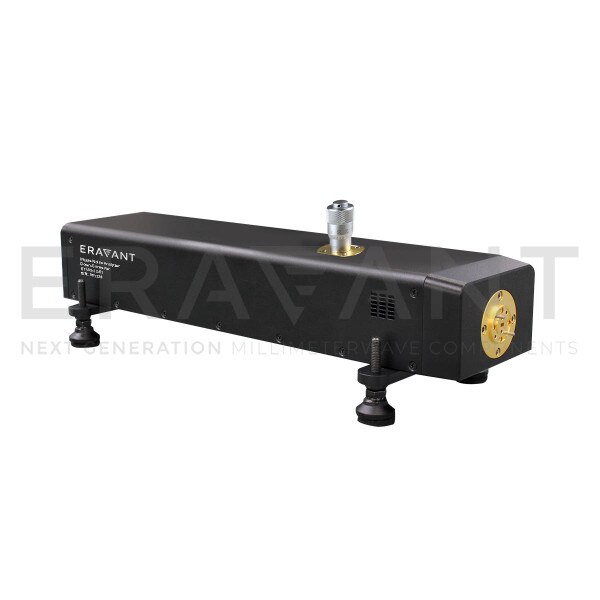

STI-05-12-S1 is a E-Band phase noise analyzer (PNA) down-converter that converts millimeterwave (mmW) signals from a frequency range of 60 to 90 GHz to the baseband at 10 MHz to 1.6 GHz. The down-converter requires two +6 dBm driving power as its LO input signals at 10 to 15 GHz from the PNA. The down-converter then convert the DUT mmW signals in the range of 0 to + 10 dBm to two IF outputs feeding low frequency PNA for phase noise analysis. The down-converter has low harmonic levels and excellent gain flatness, extending the microwave PNA to perform the phase noise testing beyond 50 GHz. Various models are available in full waveguide bands, from WR-15 to WR-03 are avaiable to covering the frequency range of 50 to 330 GHz.
Login to view pricing

Bulk Pricing

Login to view pricing

Technical Details

Minimum RF Frequency60 GHz
Maximum RF Frequency90 GHz
Minimum IF Frequency10 MHz
Maximum IF Frequency1.6 GHz
Minimum LO Frequency10 GHz
Maximum LO Frequency15 GHz
Power Supply100 VAC to 240 VAC
RF PortWR-12 Waveguide
